Tavan false ceiling details with structure dwg file


Description

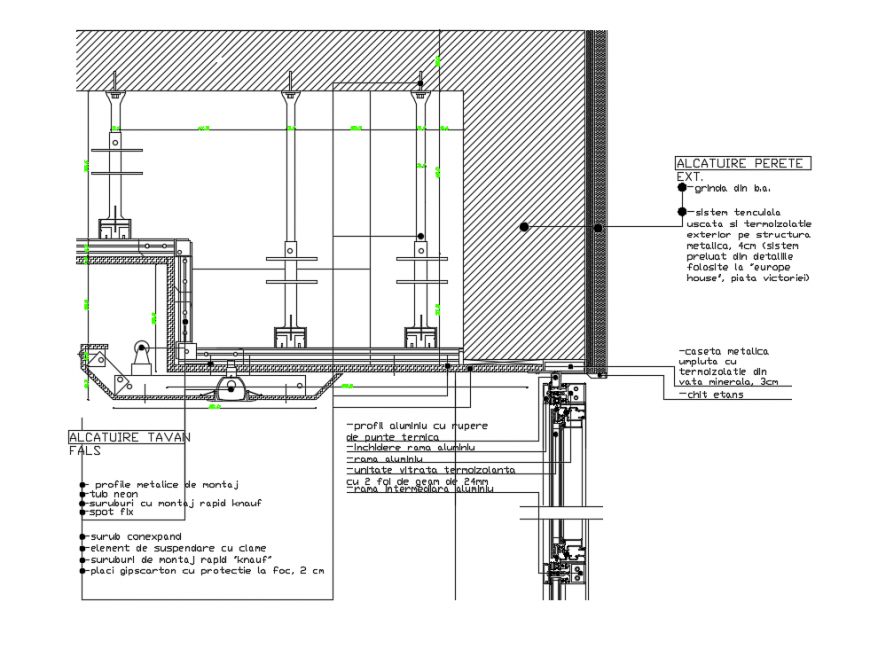

Tavan false ceiling details with structure that includes a detailed view of grind from b.a., dry plaster system and external thermal insulation on metallic structure, 4cm (system taken from the details used in "europe house", victory market), metal box filled with mineral wool thermo-insulation, 3cm, Aluminium profile with thermal break, Aluminum frame closure, double glazing unit of 24mm and much more of ceiling details.




File Type: DWG File ID: 129104
