Gyproc isolation brick wall cad drawing auto-cad details dwg file


Description

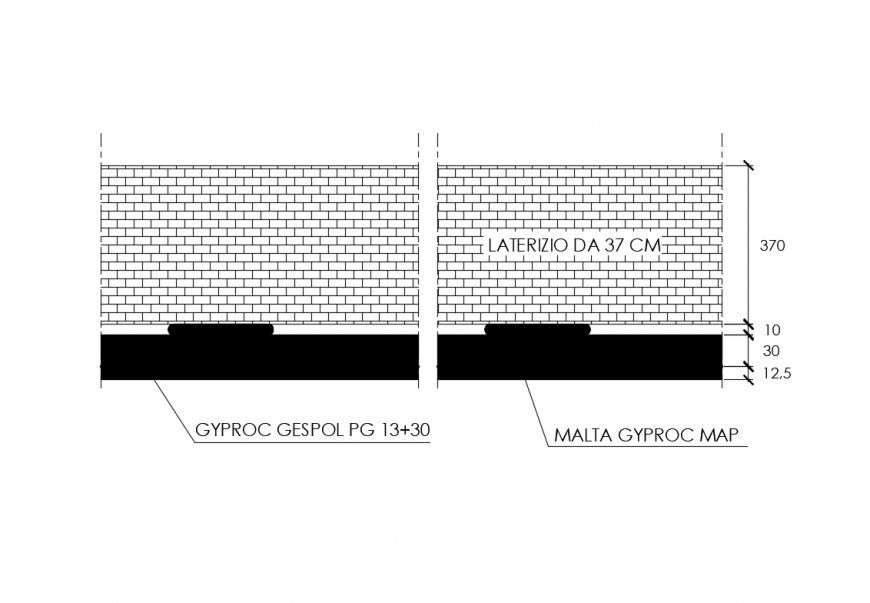

Gyproc isolation cad drawing auto-cad details that inclues a detailed view of gyproc gespol pg 13 + 30, malta gyproc map, 37 cm brick, performance characteristics, thermal transmittance, u = 0.443 w / m2k - calculated value neglecting the influence of thermal bridges, on plastered wall on both faces, composition, slabs of gypsum-coated laminate, gyproc gespol pg 13 + 30 in the number of 1 slab. the gyproc gespol pg plates are in euroclass b-s1, d0 according to en 13501-1. and much more of constructive details.




File Type: DWG File ID: 135212
