Sewer Design Guidelines DWG File with Manhole Section Details

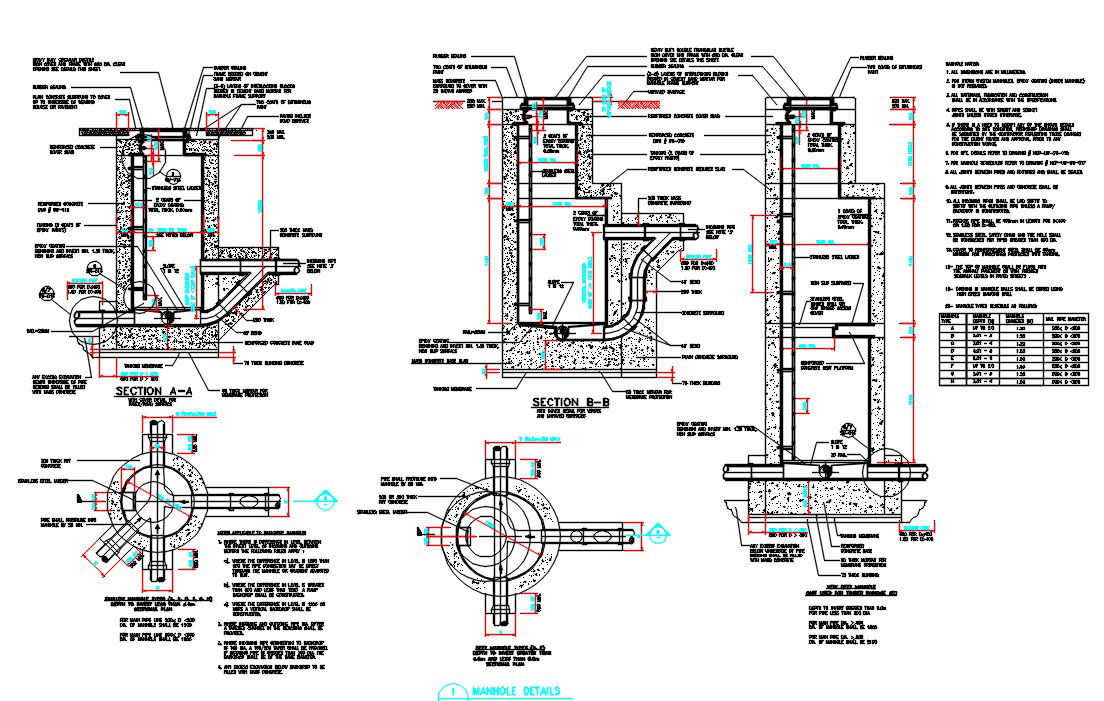

This Sewer Design Guidelines DWG File provides a comprehensive 2D CAD drawing prepared in AutoCAD format including incoming and outgoing sewer section details with precise dimensional annotations. The drawing illustrates pipe connections passing directly through the manhole or adjusted to suit gradient requirements. Section A A and Section B B clearly show manhole wall thickness, benching slope, invert level alignment, pipe diameter positioning, and base slab reinforcement details. All joints between pipes and fixtures are properly sealed and dimensioned to ensure leak proof performance and structural stability.
