Kerb Block AutoCAD DWG File with Detailed Road and Pavement Layout

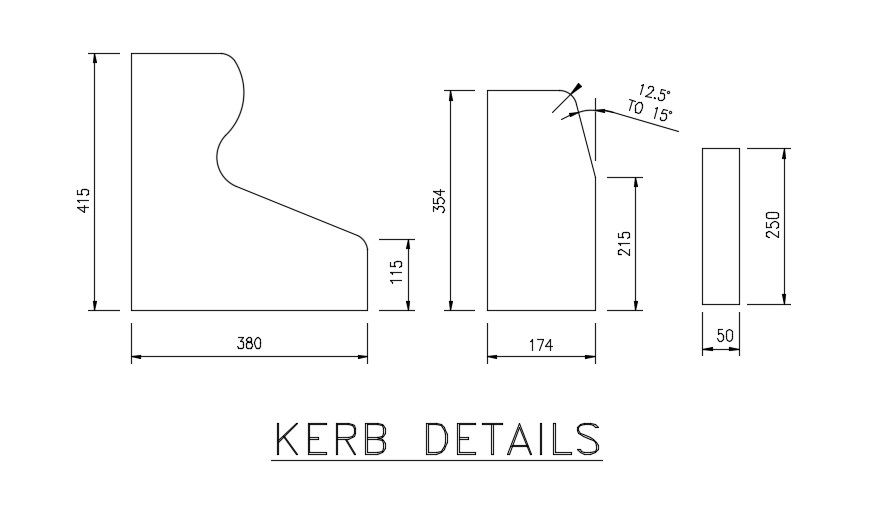

This kerb block detail drawing presents a precise kerb block profile with overall height 415mm and base width 380mm, clearly marked for road layout and pavement edge construction. The section shows a shaped front face with smooth curved transition and a bottom thickness of 115mm. Additional kerb block detail includes a secondary section with 354mm height and 174mm base width, featuring a 12-point 5-degree to 15-degree sloped top edge for controlled surface runoff. A rectangular unit of 250mm height and 50mm thickness is also illustrated for alignment reference.
