Temple Architectural Detail Plan Elevation Section 6000x6000mm CAD
Tags
#Temple CAD drawing#Temple plan elevation#Temple architectural detail CAD#Temple section drawing plan#Temple Architectural Detail Plan Elevation Section 6000x6000mm CAD file#Detailed temple dome and section AutoCAD drawing 6000x6000mm
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

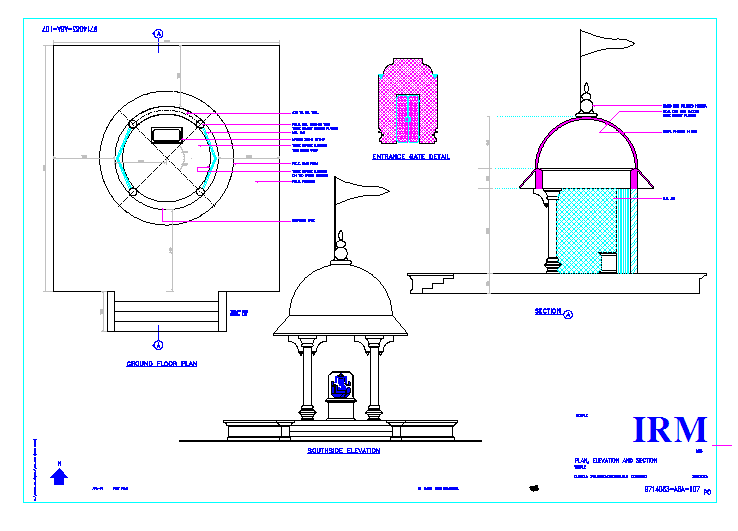

This Temple Architectural Detail Plan Elevation Section 6000x6000mm CAD drawing is a comprehensive AutoCAD DWG file presenting complete architectural documentation of a temple structure with precise dimensional specifications. The drawing includes the ground floor plan layout, entrance gate detail, sectional view, and south side elevation with accurate measurements in millimeters. The circular sanctum layout, column positioning, stepped plinth, dome structure, and flag mast detailing are clearly defined.
