Modern Ceiling Design Layout with Lighting Plan CAD Drawing Detail

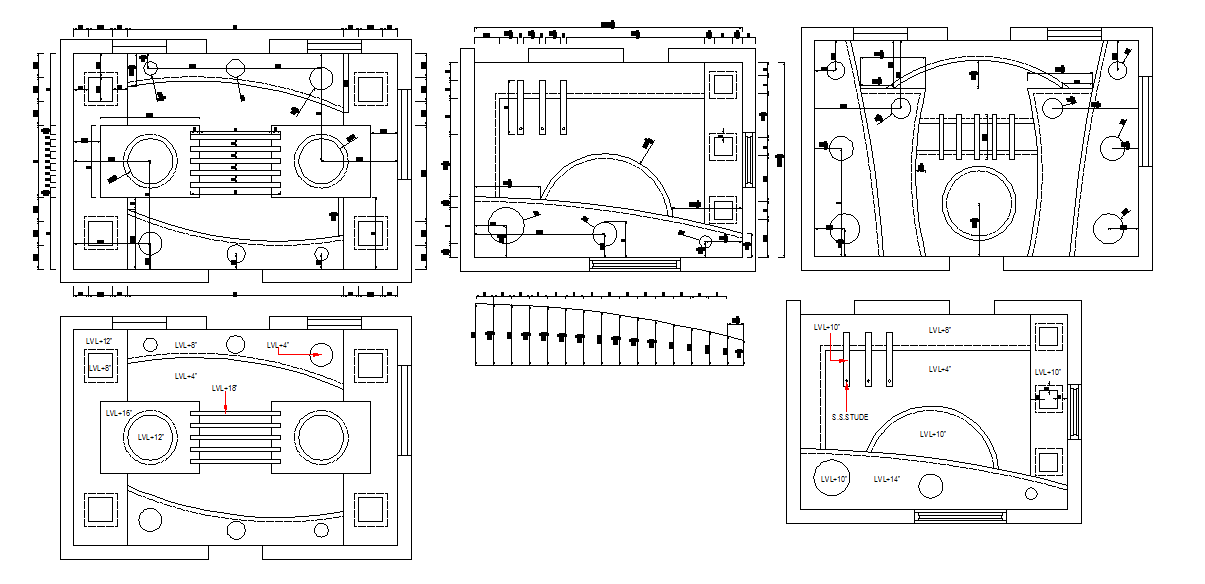

This Modern ceiling design layout drawing presents a detailed False ceiling plan with coordinated Lighting layout drawing and sectional profiles for interior execution. The plan illustrates curved and layered ceiling geometry, recessed lighting positions, hanging light points, and level indications such as LVL minus 4, LVL minus 8, LVL minus 10, and LVL minus 12 for accurate height control. The reflected ceiling plan includes circular cutouts, linear panel divisions, cove lighting zones, and symmetrical fixture placement for balanced illumination. The Ceiling section detail further explains vertical drop dimensions, stepped profiles, and concealed lighting integration required for precise installation.

This Interior ceiling CAD plan is developed in AutoCAD format to assist architects, interior designers, civil engineers, and contractors in residential and commercial interior projects. The Modern ceiling design layout ensures proper alignment between the lighting layout drawing and the structural ceiling framework.
