Duplex Ceiling Plan with Level Details First and Second Floor

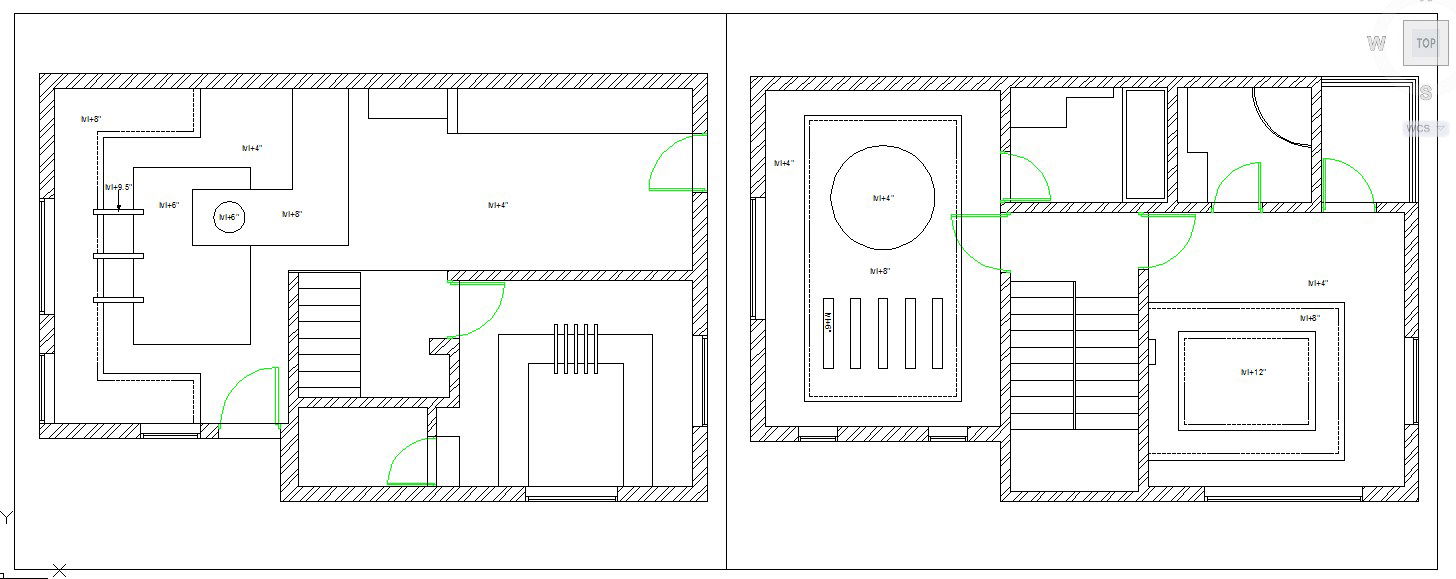

This Duplex ceiling plan drawing presents a detailed False ceiling layout for the first floor and second floor with clearly marked level indications such as plus 4 inch, plus 6 inch, plus 8 inch, and 12 inch ceiling drops. The plan highlights stepped profiles, recessed panels, circular feature cutouts, and linear strip elements integrated within the living room, lobby, and bedroom areas. Staircase ceiling alignment and passage connections are accurately coordinated to maintain uniform height transitions. The Reflected ceiling plan defines slab offsets, beam positions, and ceiling recess zones to ensure proper installation and execution accuracy.

This Residential ceiling CAD drawing is prepared in AutoCAD format to support architects, interior designers, and civil engineers in duplex interior development projects. The Duplex ceiling plan ensures vertical coordination between both floors while maintaining aesthetic balance and structural clarity.
