Dome Roof Detail Drawing 14ft Diameter 10ft Height Section Plan

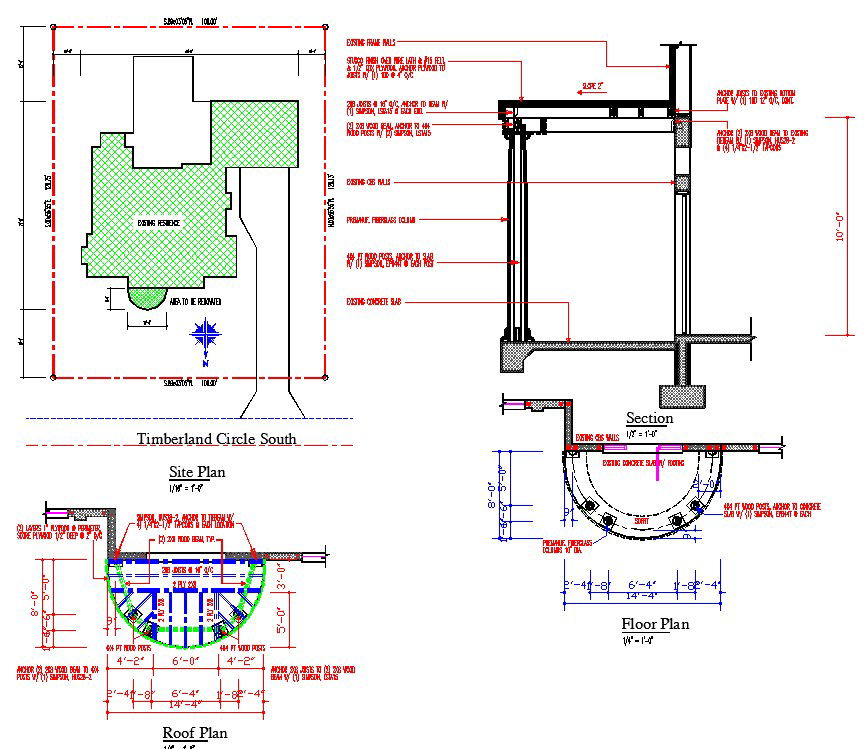

Dome Roof Detail Drawing 14ft Diameter 10ft Height Section Plan is a professionally drafted AutoCAD DWG file presenting complete architectural and structural detailing of a circular dome roof system. The drawing includes a fully dimensioned site plan, roof plan, floor plan, and sectional elevation with clear measurement references. The dome structure is designed with an approximate 14ft diameter and 10ft vertical height, showing framing layout, support members, base slab connection, wall interface, and curved roof geometry for accurate construction execution.
