Building Section DWG with Compression Layer, PVC Membrane, and Joist

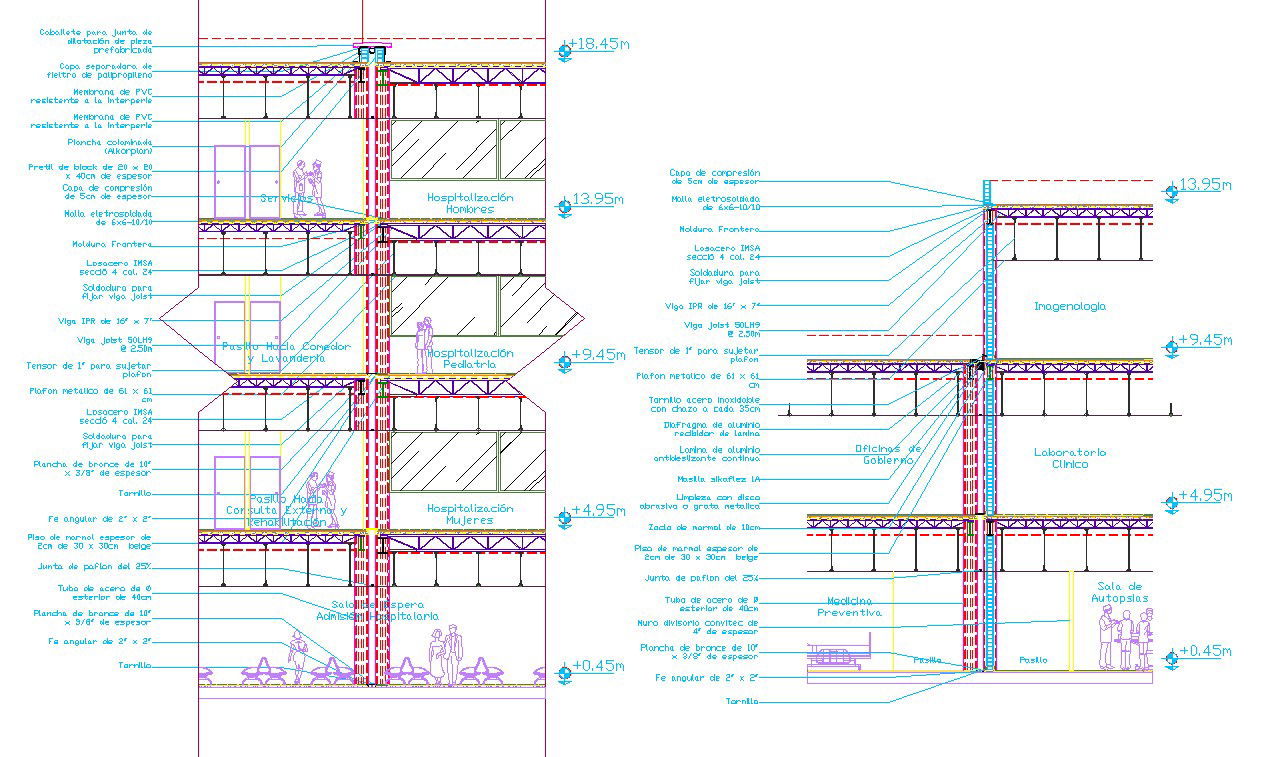

This DWG file provides a detailed building section design, ideal for architectural and engineering projects. The drawing illustrates multiple floors with clear sectional views, showing structural elements such as compression layers, polypropylene separating layers, weather-resistant PVC membranes, and steel joist beam welds. Each layer and component is dimensioned precisely, enabling architects, interior designers, and civil engineers to plan, visualize, and execute the building layout efficiently. The file also includes annotations for floor heights, wall thicknesses, and beam placements, ensuring a complete understanding of the building’s structural composition.
