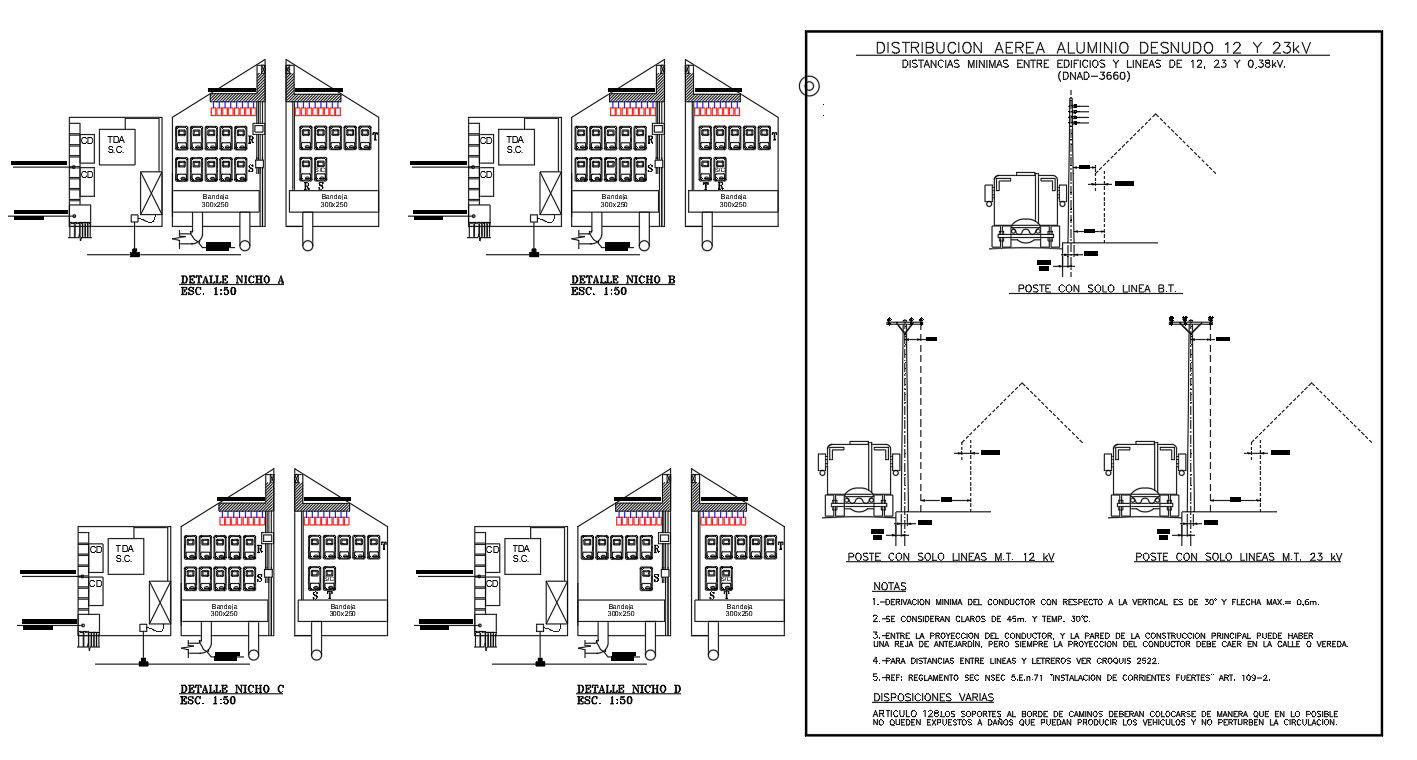

2D Niche Construction Drawing DWG File


Description

The minimum driver derivation from the vertical is 30 ° and the maximum arrow = 0.6m. there area between the driver projection, and the main construction wall, there may be a garden, but always the driver projection must fall on the street or walkway for distances between lines and signs see the sketch.




File Type: DWG File ID: 159724

Uploaded by:


Komal
India
