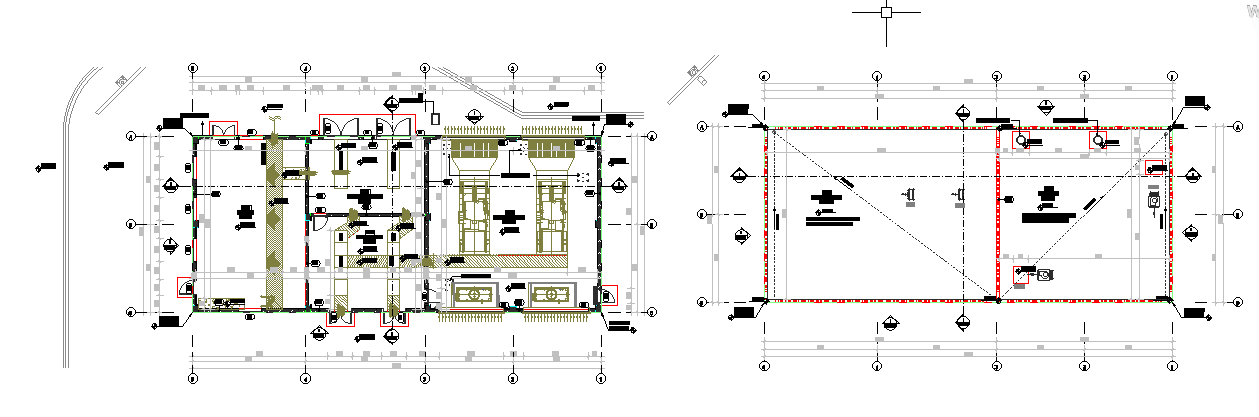

Machinaries like transformer,LV panel,Generators and MV room floor plan and section details.Download DWG file.


Description

The drawing file contains the detailed explanation drawing of Machinery like a transformer, LV panel, Generators, and MV room floor plan and section. The land area of the M.V room is 77.42-meter square. The land area of the transformer room is 35.83-meter square.LV panel room land area is 44.82-meter square. And the generator room land area is 119.92-meter square. Download the DWG file.




File Type: DWG File ID: 160220
