Steel Truss Bridge Detail 14m Span Construction Planning design

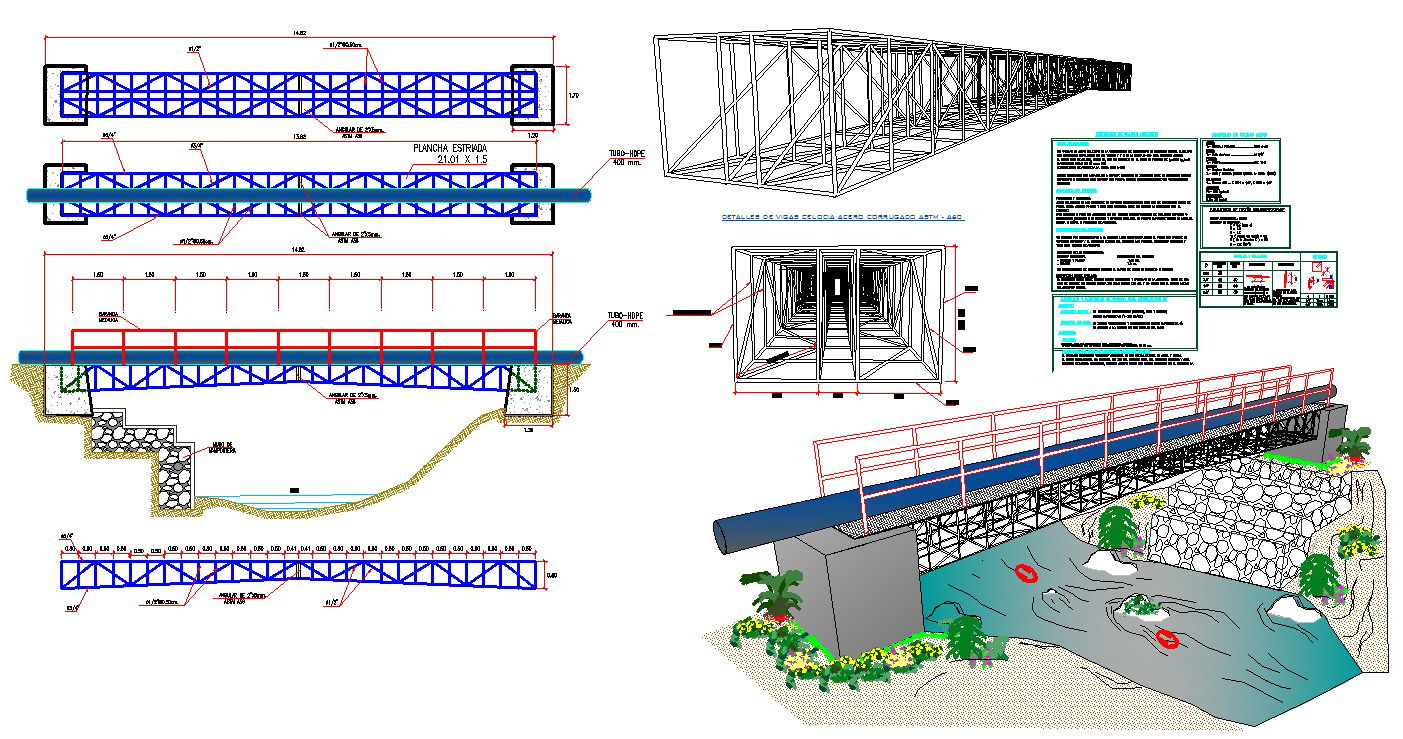

This steel truss bridge detail 14m span construction plan presents a complete structural drawing, including top view, side elevation, cross section, and 3D structural visualization. The layout illustrates steel truss members, diagonal bracing, bottom and top chord alignment, support bearings, abutment connection, and deck slab placement. It clearly defines the span length of 14m, structural depth, plate thickness, tube sections, and welded joint details required for accurate fabrication and site execution. Reinforcement positioning, structural grid spacing, and foundation interface are also shown for construction clarity.
