House Hydraulic Layout DWG with Isometric Gravity and Direct System

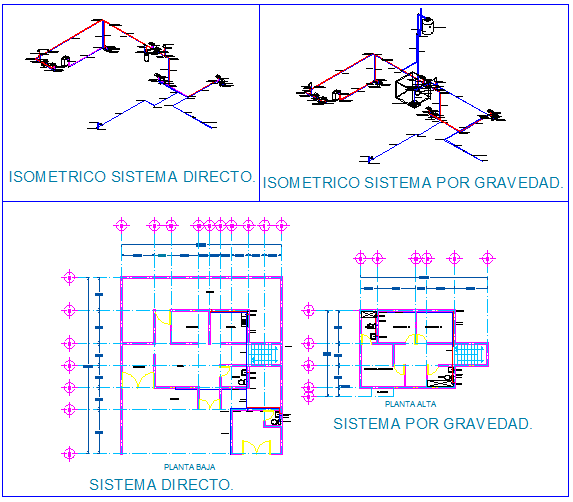

This House Hydraulic Layout DWG file provides a complete hydraulic design for residential buildings. It includes detailed isometric views of the direct system and gravity-based system, showing the piping routes for all rooms. Each fixture, including sinks, toilets, and showers, is connected with precise pipe layout and slope direction to ensure proper water flow and drainage.The layout features both first-floor and ground-floor piping plans with dimensional references and branch connections. Designers and engineers can easily understand the flow, design water pressure distribution, and coordinate with other building systems. This DWG file is suitable for use in AutoCAD, Revit, 3ds Max, and SketchUp for planning, simulation, and professional presentations. It provides all hydraulic system details required for construction, renovation, and inspection purposes in residential projects.
