Electrical Distribution Board Mounting Detail AutoCAD DWG Drawing

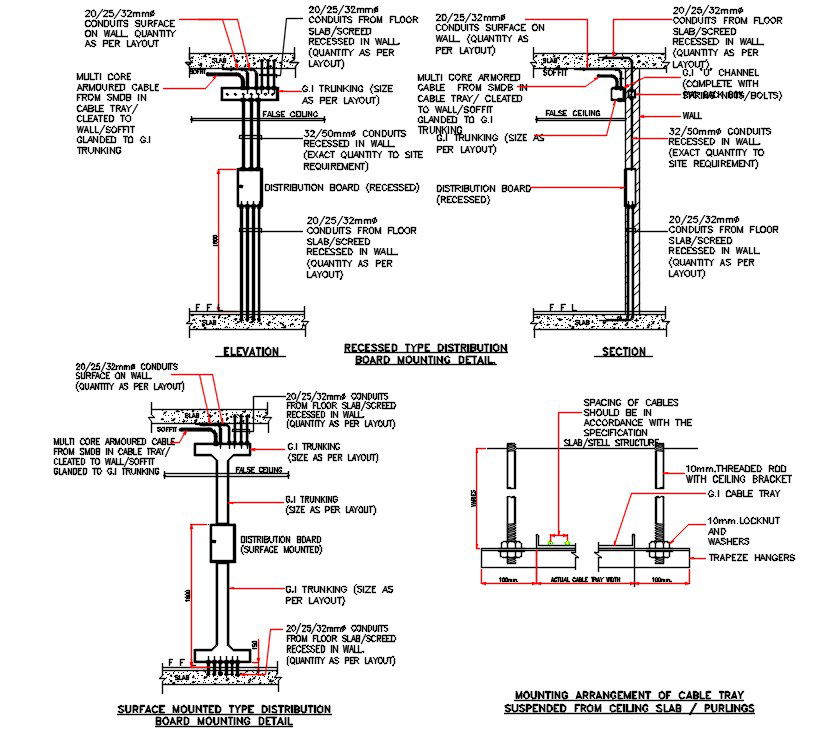

This AutoCAD DWG file offers detailed electrical distribution board mounting plans, including both recessed and surface-mounted types. The drawing illustrates the installation of multi-core armoured cables in cable trays, with connections to walls or soffits using G.I. trunking. It also includes 20/25/32mm conduits running from the floor slab/screed, recessed into walls, as per the layout requirements. The spacing of cables is designed to meet the specifications for safety and performance. The file is compatible with AutoCAD, Revit, and other CAD platforms, making it an essential tool for professionals working on electrical infrastructure projects.
