Earth Points To Dedicated Column Bar Connection Free Drawing DWG file


Description

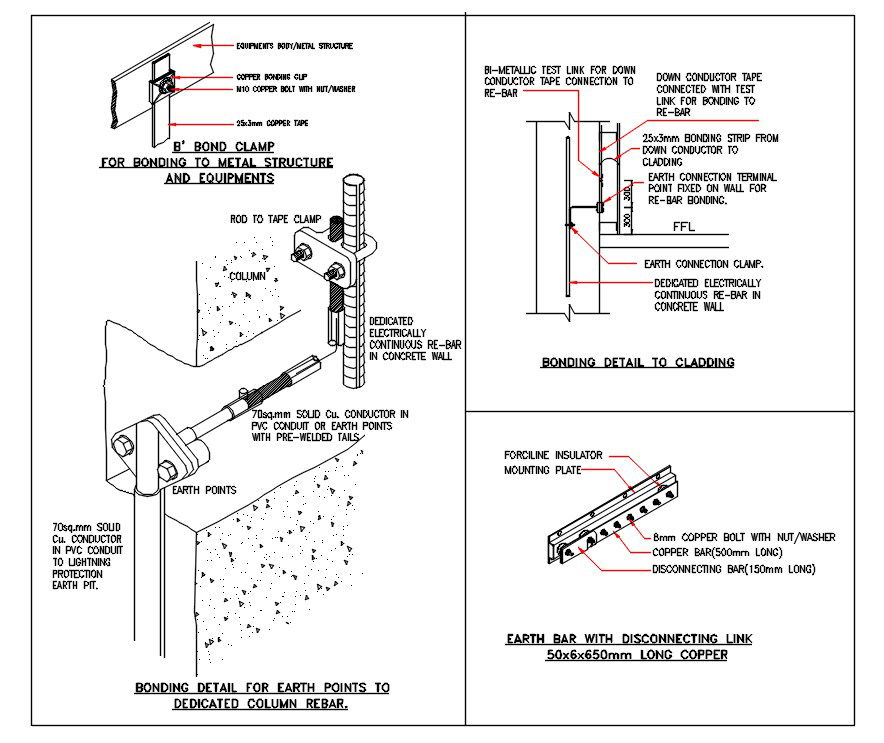

AutoCAD drawing of earth point to dedicated column bar connection detail includes bonding detail for earth points to dedicated column re-bar, earth bar with disconnecting link 50x6x650mm long copper, bonding detail to cladding, metal structure and equipment. also has detail of 8mm copper bolt with nut/washer, disconnecting bar(150mm long), forciline insulator, dedicated electrically continuous re-bar in concrete wall and conductor in PVC conduit to lightning protection earth point.




File Type: DWG File ID: 163039
