Residencial Floor Plan With Door And Window Marking DWG File
Tags
#house plan#house floor plan#house dwg file#house interior plan
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

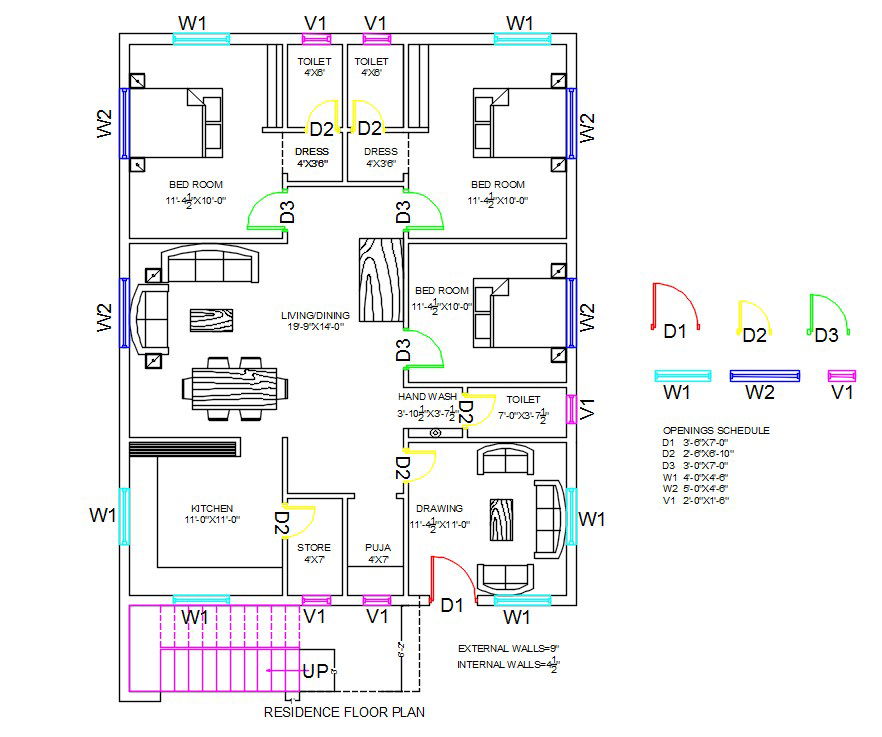

The residential Floor plan with furniture layout CAD drawing includes 3 bedrooms with an attached toilet, kitchen, drawing room, living cum dining area, prayer room, and store room. the additional drawing such as a door window schedule marking OPENINGS SCHEDULE
D1 3'-6"X7'-0"
D2 2'-6"X6'-10"
D3 3'-0"X7'-0"
W1 4'-0"X4'-6"
W2 5'-0"X4'-6"
V1 2'-0"X1'-6"
, internal wall 9" and external wall 41/2" detail.
