Catalan Roof Plan over Brick Wall with Insulation and Waterproofing

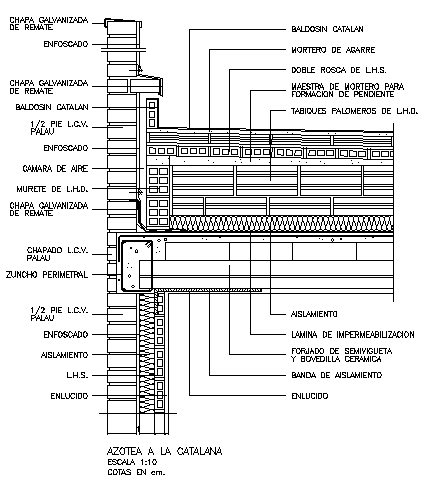

This AutoCAD drawing showcases a detailed plan for a Catalan roof built over brick walls with insulation and waterproofing elements. The drawing is at a scale of 1:10 and includes various layers such as galvanized sheet, ceramic tiles, and air chambers. The detail also highlights the specific insulation materials, waterproof membranes, and reinforcement elements used in the roof construction. This comprehensive drawing is ideal for architecture students and professionals involved in roof and masonry design.
