Wall Support on Foundation with Waterproofing and Base Layer Details

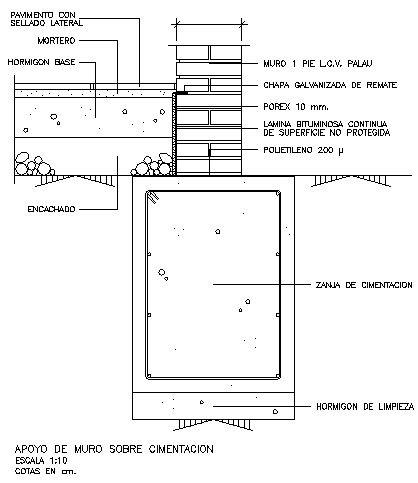

This AutoCAD drawing provides a detailed section of wall support on the foundation, showcasing the base layer with waterproofing elements and masonry components. The drawing is at a scale of 1:10 and includes key details such as mortar layers, galvanized sheet, and concrete base with aggregates. The design also features a protective waterproofing membrane, ensuring structural durability. This drawing is an excellent reference for students and professionals involved in foundation and wall construction.
