Connection Double Walls Cement Blocks DWG File for AutoCAD Projects
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

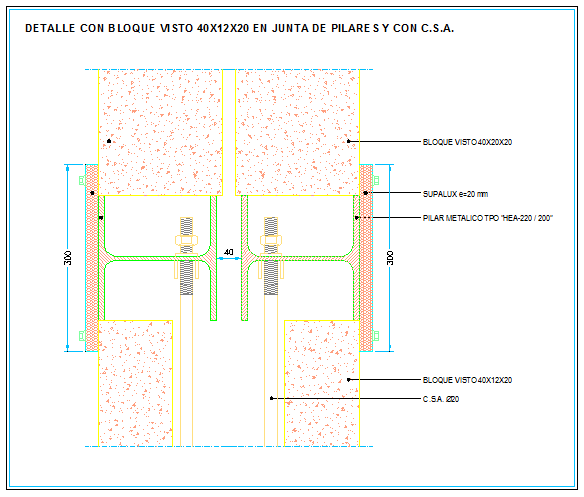

This Connection Double Walls of Cement Blocks DWG file provides a precise AutoCAD drawing for architects, civil engineers, and construction professionals to plan and execute reinforced double wall construction. The file details the layout of double walls, including block dimensions (40x12x20 cm), joint spacing, and structural connections with metal pillars (HEA-220) and supplementary reinforcements.
Tags
#double wall connection#cement block DWG#AutoCAD wall layout#reinforced wall detail#structural wall design#block wall section drawing
