This drawing presents reinforcement detail in this file. Download this 2d autocad drawing file.

Description

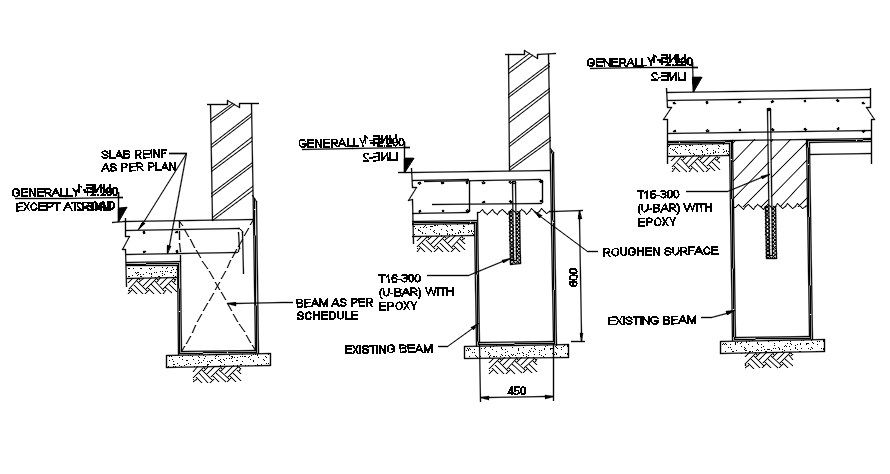

This drawing presents reinforcement detail in this file.this file consist of existing beam, roughen surface, beam as per scheduled, epoxy layer, slab detail as per plan.this drawing can be used in working drawing detail. Download this 2d autocad drawing file.

File Type: DWG File ID: 166615
