Kitchen Storage Section CAD Drawing with Drawer and Joinery Details

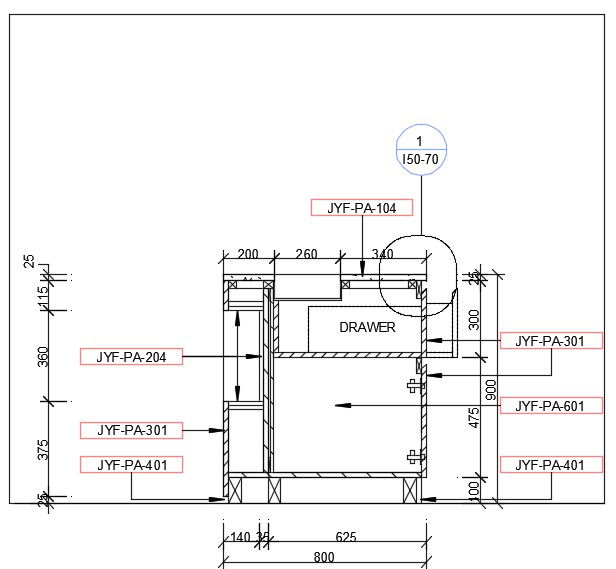

This kitchen storage section AutoCAD drawing presents a precise 2D sectional detail developed for modular kitchen planning and execution. The CAD file shows a complete storage unit with an overall base width of approximately 800 mm and an internal clear width of around 625 mm. Vertical dimensions indicate a total height close to 900 mm, including a base plinth of about 100 mm. The drawing clearly illustrates drawer positioning, cabinet carcass thickness, and internal partition layout. Horizontal offsets such as 200 mm, 260 mm, and 340 mm are marked to define storage zoning and functional spacing. All components are labeled with reference codes to support clear identification and coordination.

The drawing also includes detailed joinery elements such as hinge locations, drawer slide positioning, and internal support panels. Section lines and hatch patterns differentiate materials and construction layers, making the drawing suitable for fabrication reference. Dimension annotations are provided for every critical component to ensure accuracy during manufacturing and installation. This AutoCAD DWG file is useful for architects, interior designers, civil engineers, and kitchen furniture detailers working on residential or commercial kitchen projects. The drawing supports joinery detailing, material coordination, and construction documentation and can be accessed through a Cadbull subscription for professional use in AutoCAD, Revit, 3D Max, and Google SketchUp workflows.
