Top Plan Sofa CAD Drawing with Cushion Layout and Dimensions

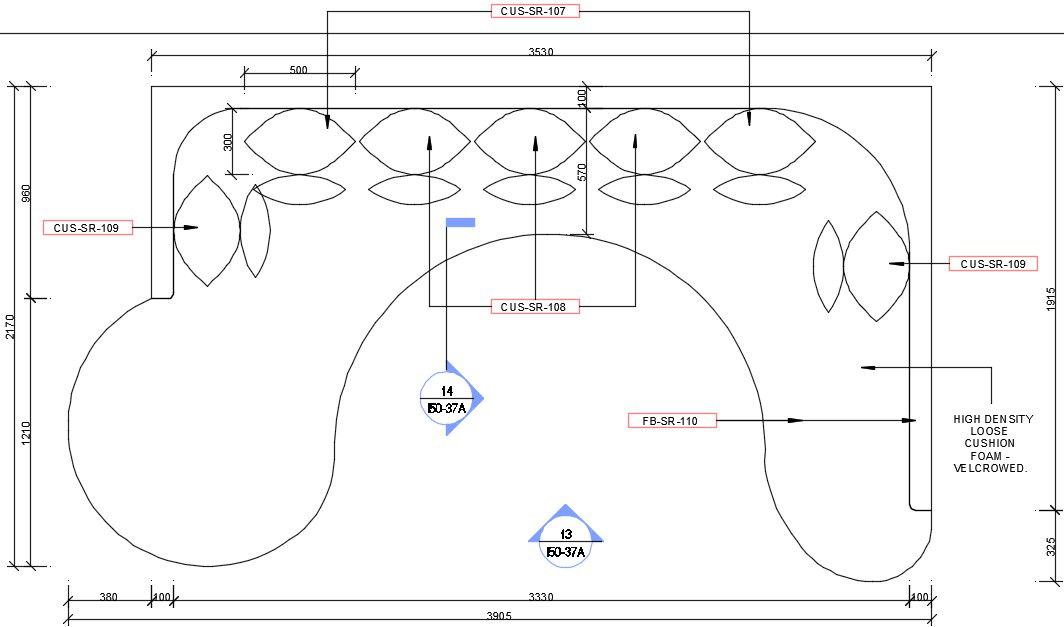

This top plan sofa AutoCAD drawing presents a detailed 2D layout prepared for interior furniture planning and execution. The CAD file shows a curved sofa arrangement with an overall width of approximately 3905 mm and a central seating span of about 3330 mm. Cushion placement is clearly illustrated with individual cushion modules marked along the back and sides. Dimensional annotations indicate key offsets such as 500 mm back clearance, 300 mm cushion widths, and defined corner radii for smooth seating flow. All cushions are identified with specific material codes, supporting accurate material specification and coordination.

The drawing also highlights high-density loose cushion foam with velcro fixing, clearly noted for practical installation and maintenance. Plan depth dimensions of approximately 2170 mm, and internal seating depth references are provided to assist space planning. Curved edges, sofa ends, and internal clearances are drafted to scale for professional use. This AutoCAD DWG file is suitable for architects, interior designers, and furniture detailers working on residential or commercial interior projects. The drawing supports furniture layout planning, material coordination, and design development, and can be accessed through a Cadbull subscription for use across AutoCAD, Revit, 3D Max, and Google SketchUp workflows.
