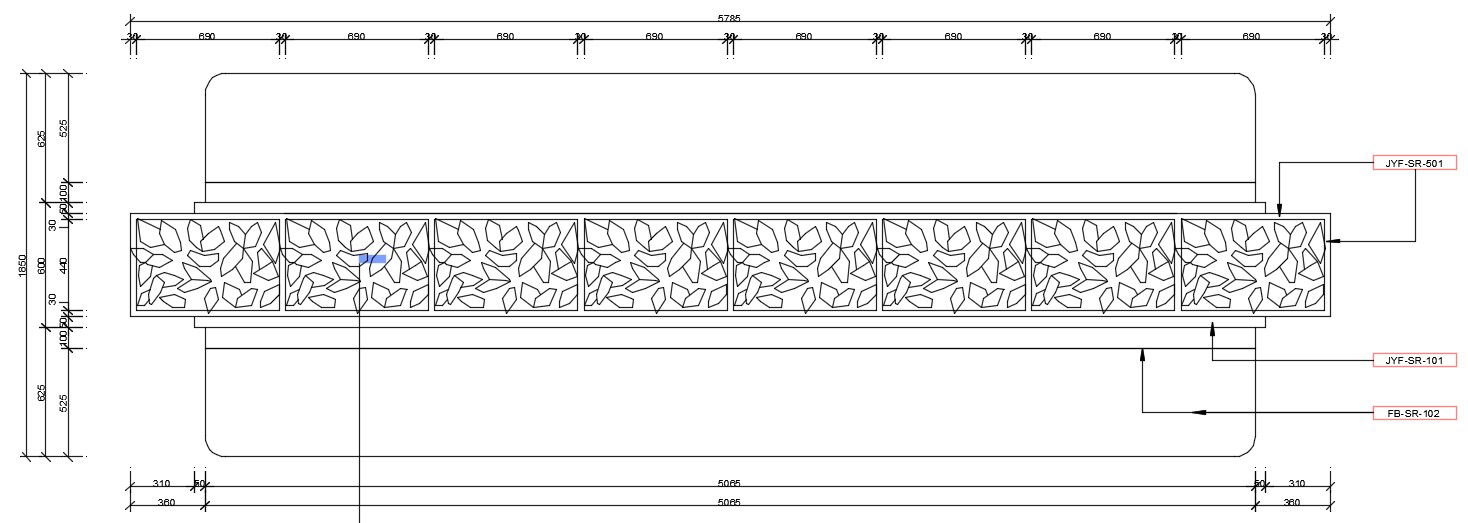

Private Garden Sitting Area Back Elevation CAD Drawing Detail

This private garden sitting area AutoCAD drawing shows a detailed back elevation design drafted for outdoor landscape and seating spaces. The 2D CAD file includes a continuous sitting bench with decorative back panel detailing and clear joinery representation. Overall horizontal length is approximately 5785 mm, with repetitive panel modules of about 690 mm width, clearly marked for fabrication accuracy. Vertical dimensions indicate seating height, backrest height, and base offsets, ensuring ergonomic proportions. Material layer references and joint alignments are shown to support construction-level detailing and precise execution.

The elevation drawing also highlights structural support elements, base thickness, and panel placement with dimension strings provided at all critical points. Labeling references for components such as back panels, seating base, and finish levels are included for coordination. This AutoCAD DWG file is suitable for architects, landscape designers, interior designers, and builders working on private gardens, villa outdoor seating, or residential landscape projects. The drawing supports elevation development, joinery detailing, and site execution planning. Access through a Cadbull subscription allows professionals to reuse and modify this CAD drawing across AutoCAD, Revit, 3D Max, and SketchUp workflows.
