Isolated Column Footing Detail Drawing with Plan and Section AutoCAD

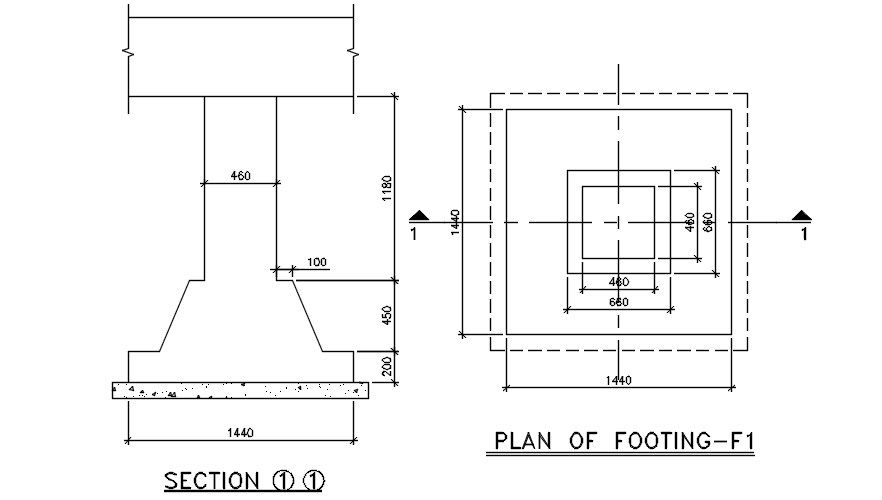

This AutoCAD DWG file provides a clear, isolated column footing detail drawing with coordinated plan and sectional views for structural construction use. The section illustrates the footing profile with a base width of 1440 mm, stepped pedestal geometry, and column neck size of 460 mm. Vertical dimensions such as 1180 mm total height, 450 mm pedestal depth, and 200 mm PCC thickness are clearly marked to support accurate site execution. The footing base shows proper projection and load distribution, with clean annotations for alignment and construction reference.

The footing plan labeled F1 presents a square layout measuring 1440 mm by 1440 mm, with inner pedestal dimensions of 660 mm and column core size of 480 mm. Centerlines, offsets, and section indicators are clearly shown for precise setting out. Drafted in clean 2D AutoCAD format, this DWG file is suitable for architects, civil engineers, builders, and structural designers. It supports foundation planning, quantity checks, and construction detailing, and can be directly edited in AutoCAD or referenced in Revit, 3ds Max, and Google SketchUp workflows for coordinated structural development.
