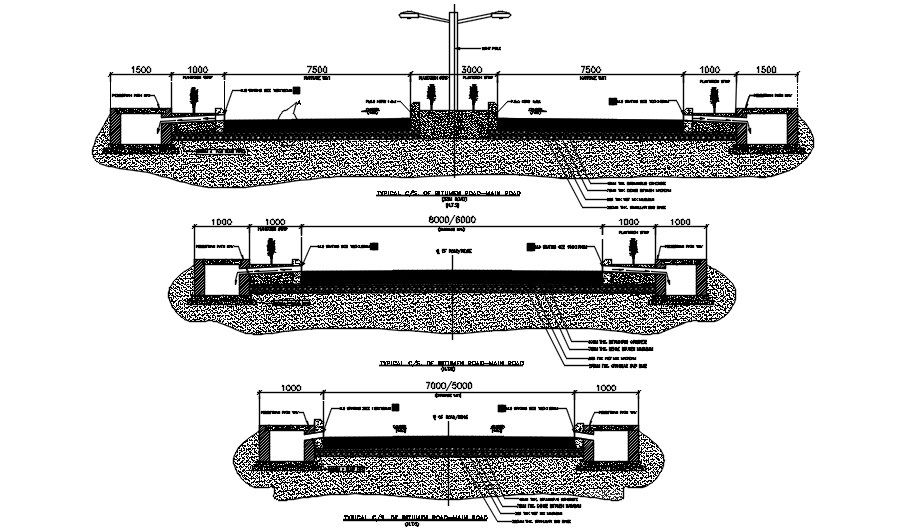

Typical Cross section of Bitumen Main Road. Download AutoCAD DWG file.


AutoCAD plan of cross sectional details of bitumen main road. The foundation course layered as granular sub base, WBM, dense bitumen macadam and bituminous concrete at the top most layer. Specifications regarding Right of way, road boundary margin and pedestal dimensions are provided.Download the file file for enhanced nomenclatures.

File Type: DWG File ID: 168878
