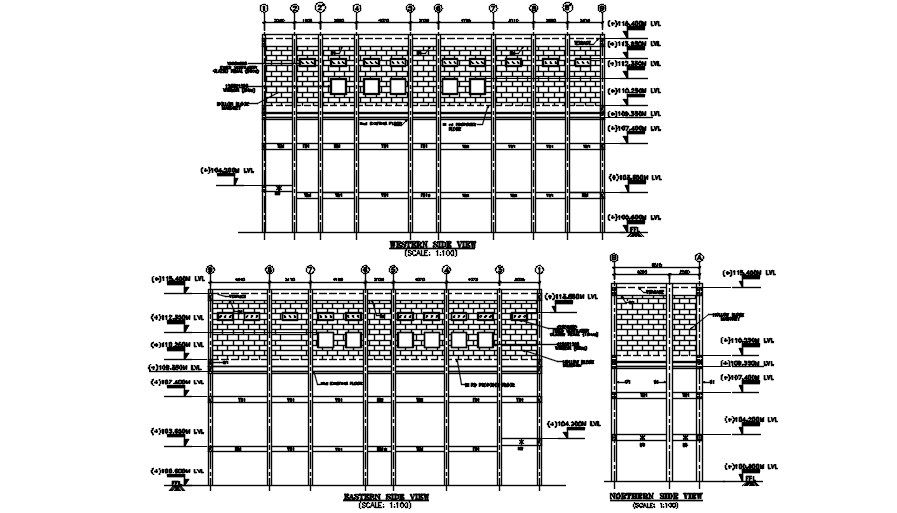

Layout of tie beam and elevation. Download AutoCAD DWG file.


Layout of tie beam and elevation of multi storied building is described. Tie beam designed as such connecting two or more columns for making it more stiffens to make the structure as a frame for stability. Each plan incorporated with the structural elements, cross sectional dimensions & designed as par to standard requirements. Download the AutoCAD DWG file form our website for enhanced attributes.

File Type: DWG File ID: 169143

Uploaded by:

Presenting the broken author avatar :D Neha Mishra
