Riverbank Typical Section DWG With Road Level And RCC Wall Detail

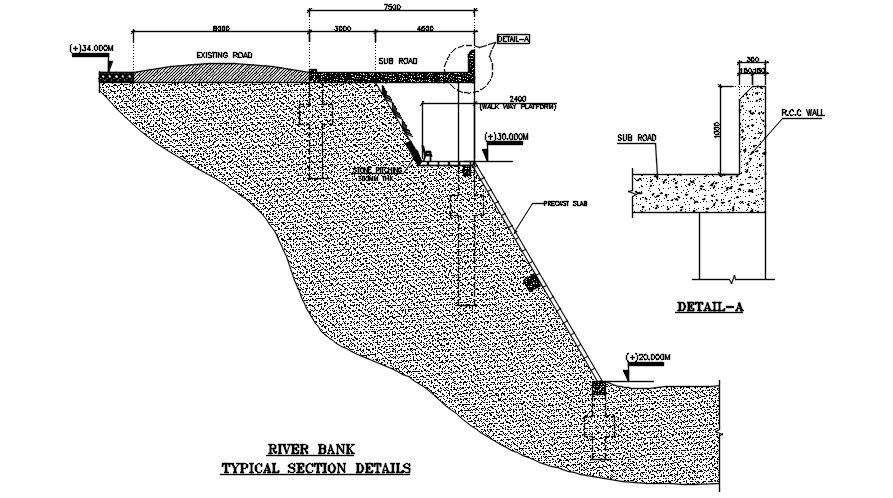

The riverbank typical section DWG drawing provides a detailed? structural representation of riverbank protection and road edge development used in civil engineering and infrastructure planning. This AutoCAD 2D drawing shows the cross-section of the riverbank, including an existing road and sub-road arrangement with a total width of approximately 7500 mm. The drawing illustrates multiple elevation levels, such as +34.000 m road level, +30.000 m intermediate platform, and +20.000 m lower riverbank level. Structural components such as stone pitching with a thickness of around 300 mm are included to protect the riverbank slope from erosion. The section also shows precast slab placement along the slope and a walkway platform measuring approximately 2400 mm wide to allow pedestrian movement along the riverbank edge.
