Detail of the pile cap drawing presented in this AutoCAD drawing file .Download this 2d AutoCAD drawing file..

Description

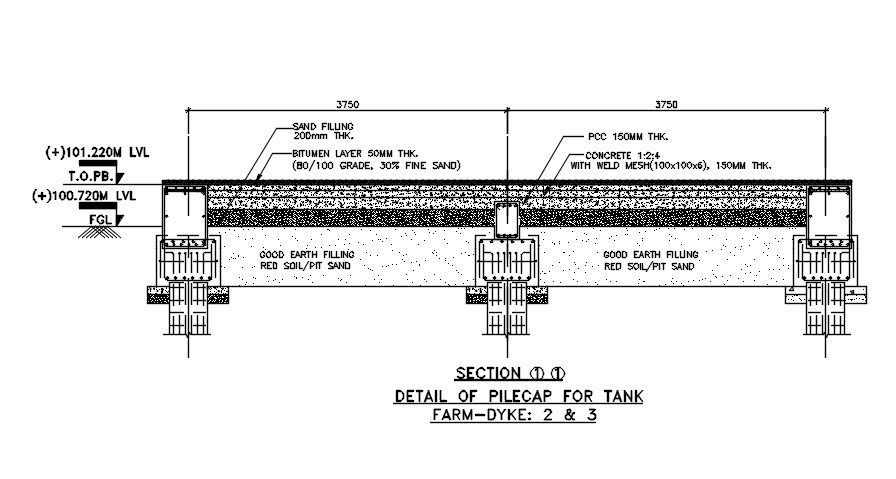

Detail of the pile cap drawing presented in this AutoCAD drawing file. this file consists of a detail section of the pile cap tank with the dimensions and material specifications. this can be used by architects and engineers.Download this 2d AutoCAD drawing file.
