Tie Beam Detail CAD Drawing with Dimensions and Material Specification

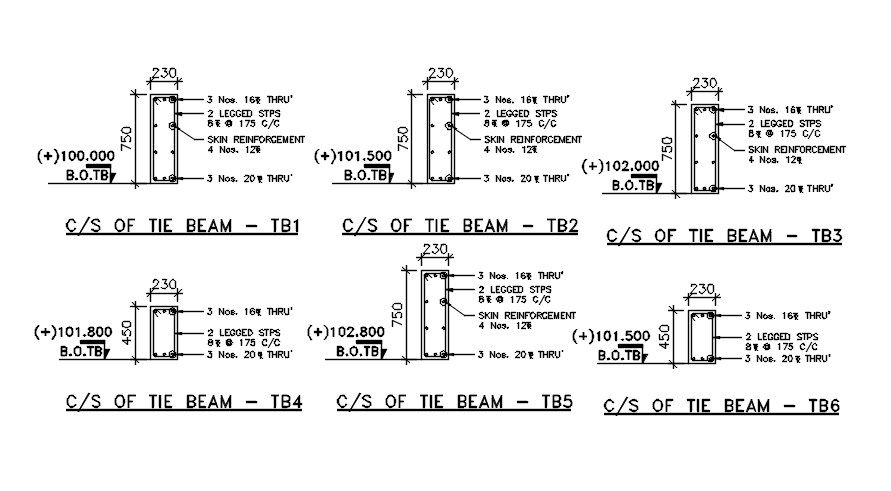

This 2D AutoCAD DWG file provides a detailed tie beam drawing, including precise dimensions and material specifications. The drawing clearly shows the structure and layout of the tie beam, offering essential details for architects and engineers working on foundation and structural projects. The material specifications ensure the proper selection of materials, contributing to the structural integrity and safety of the building. This file is perfect for integration into larger structural plans, ensuring accuracy and efficiency in your designs.

The tie beam detail is a vital part of any construction project, connecting columns and walls to ensure stability. This AutoCAD drawing can be used for both residential and commercial projects, providing all the necessary information for construction professionals. Download the AutoCAD DWG file now to access the detailed tie beam drawing and integrate it seamlessly into your design plans, optimizing the structural layout of your project.
