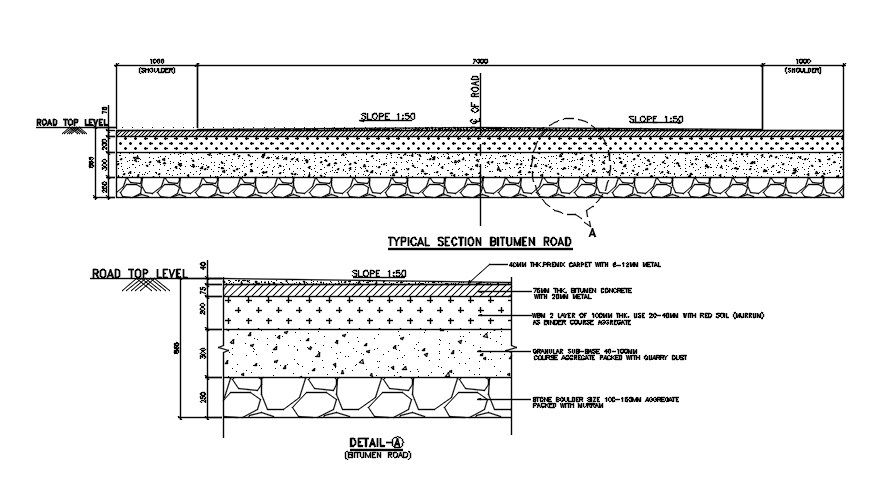

Bitumen Road Cross Section 7.00m Width 2D AutoCAD Detail Drawing

This Bitumen Road Cross Section 2D AutoCAD drawing provides a detailed and technically accurate representation of a typical bitumen road structure used in civil engineering projects. The drawing clearly shows a total road width of 7.00m with properly defined shoulder widths of 1.00m on both sides. Longitudinal slope of 1:50 is indicated for effective surface drainage. The section includes multiple construction layers such as bituminous carpet, bitumen concrete, water-bound macadam, granular sub-base, and stone boulder soling, each drawn with standard hatch patterns and clear thickness annotations.

The AutoCAD bitumen road section detail also illustrates road top-level alignment, layer thickness measurements, and material specifications required for construction documentation. A detailed, enlarged section highlights layer composition, including bitumen mix thickness and aggregate base depth, ensuring clarity for execution and quality control. This 2D AutoCAD DWG file is suitable for civil engineers and designers involved in road design, highway planning, and infrastructure documentation. With a Cadbull subscription, professionals can access this bitumen road cross-section drawing to support accurate CAD drafting and integration with AutoCAD, 3ds Max, Revit, and SketchUp-based workflows.
