Typical detail of the handrail is given in this 2D AutoCAD DWG drawing file. Download the Autocad 2D DWG drawing file.
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

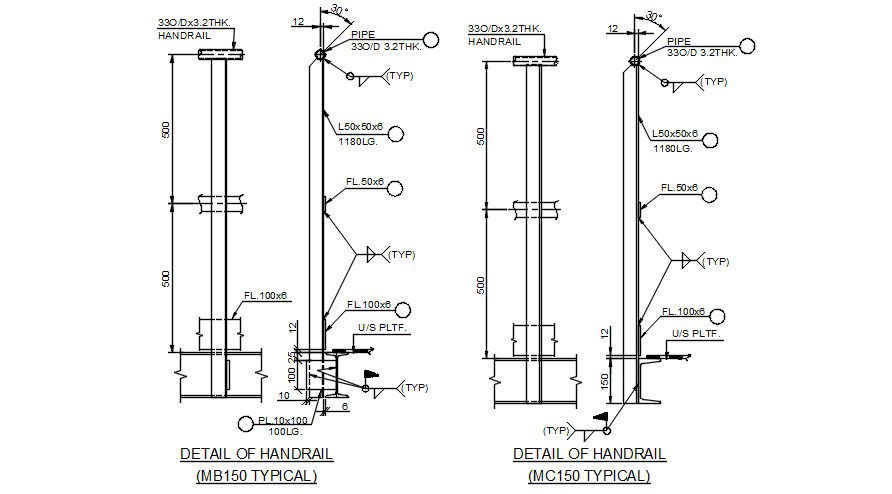

Typical detail of the handrail is given in this 2D AutoCAD DWG drawing file. The thickness of flange is 100x6mm. The height of both handrails is 1m. Size of an angle section is L60x60x6mm thickness. Thickness of pipe and handrail is 330 D 3.2mm thickness. Thank you for downloading 2D AutoCAD DWG drawing file and other CAD program files from our website.
