Air Eliminating Valve With Pile Isometric Elevation Design DWG FIle
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

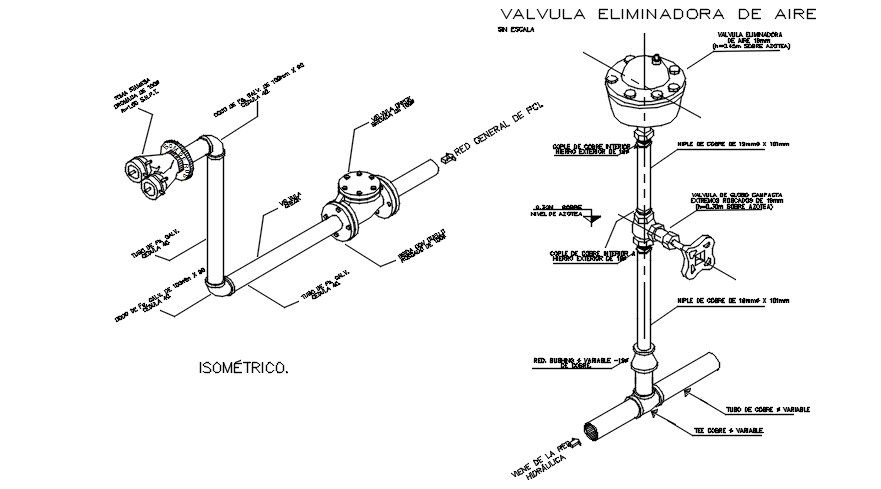

Air Eliminating Valve with pipe line isometric elevation design which includes campacta balloon valve 19mm threaded ends (h = 0.30m on roof) 19mm 19 x 101mm copper nipple, 100? threaded neck flange detail dwg file. Thank you for downloading the AutoCAD drawing file and other CAD program files from our website.
File Type:
DWG
File Size:
275 KB
Category::
Dwg Cad Blocks
Sub Category::
Autocad Plumbing Fixture Blocks
type:
Free
Tags
#plumbing plan#plumbing isometric dwg#plumbing drawing#toilet plumbing
