0.30x0.40 Column Reinforcement Section CAD Drawing Layout auto cad

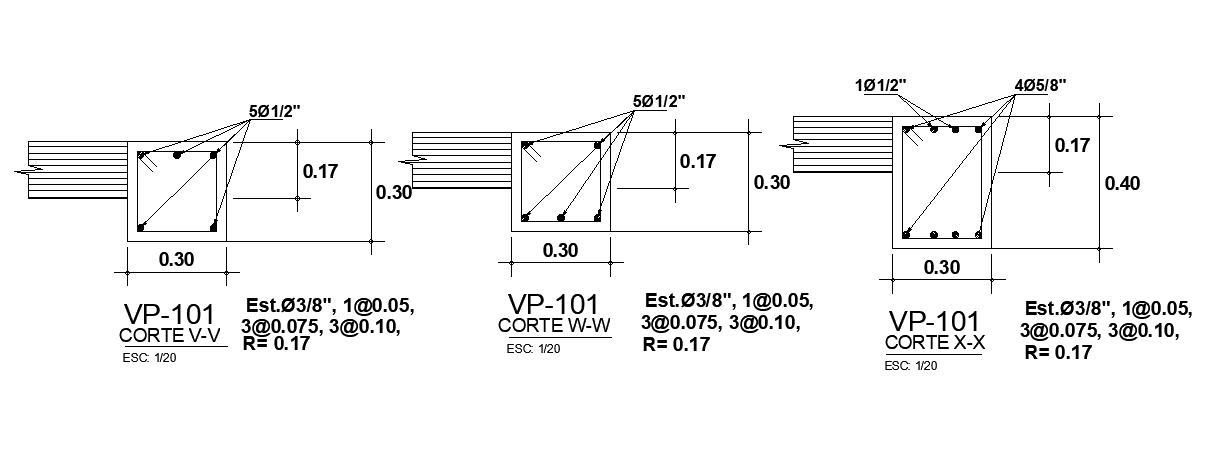

Download the 0.30x0.40 column reinforcement CAD drawing file with detailed RCC column section layouts and reinforcement specifications for structural drafting and construction planning. This AutoCAD drawing includes VP 101 column sections with Corte VV, Corte WW, and Corte X X reinforcement layouts. The drawing contains 5Ø1/2 inch reinforcement bars, 1Ø1/2 inch top reinforcement detail, 4Ø5/8 inch bar arrangement, and stirrup spacing information, including Ø3/8 inch reinforcement at 1@0.05, 3@0.075, and 3@0.10 spacing. The CAD layout also includes accurate dimensions such as 0.30 width, 0.40 height, and R=0.17 section references for proper RCC column detailing.
