Metal Truss Space Frame Structure Detail With Concrete Column Fixing

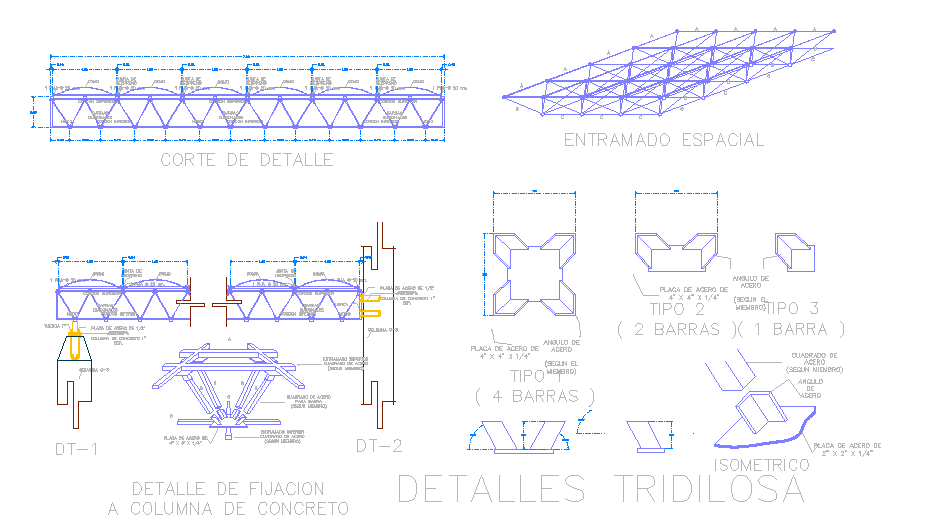

This metal truss space frame detail drawing illustrates the structural layout and connection system used in steel truss framing supported on reinforced concrete columns. The drawing includes a sectional truss elevation showing the triangular steel truss arrangement used to distribute structural loads along the roof structure. A detailed fixing section labeled DT 1 shows how the steel truss system is anchored to a reinforced concrete column using steel plates and anchor bolts with approximately 1 inch thickness support plates. The connection detail includes steel angles, anchor plates, and lower string members, which transfer loads from the steel truss frame into the concrete support column. The drawing also includes cutting section views that demonstrate the internal structural configuration of the truss system and the alignment of steel members across the frame span.
