Suspended Ceiling Installations Details Gypsum Board AutoCAD

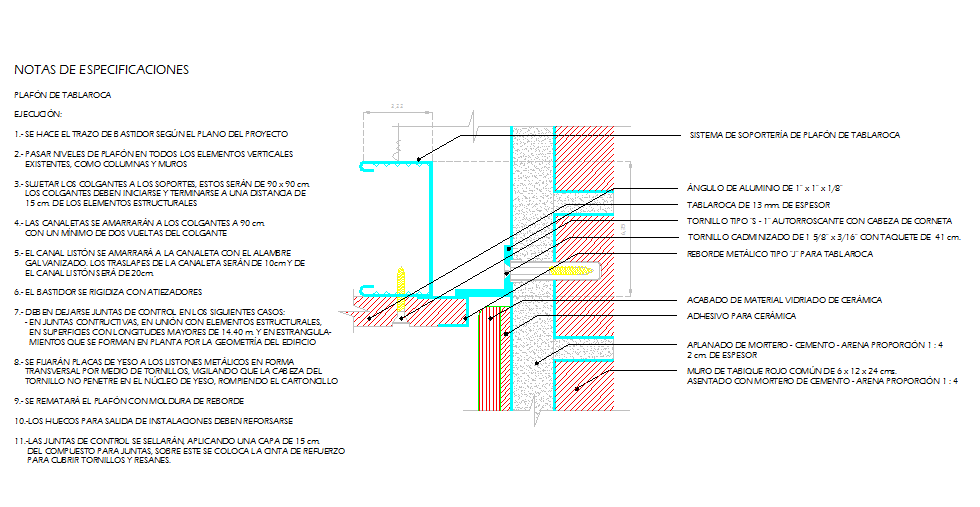

Suspended ceiling installation detail, gypsum board AutoCAD drawing presents a technical architectural section showing the installation system of a gypsum board suspended ceiling commonly used in residential and commercial interior design. This AutoCAD DWG drawing illustrates the structural arrangement of the ceiling support system, including metal support profiles, aluminum angles, and hanger connections fixed to the structural slab above. The drawing shows gypsum board panels with approximately 13 mm thickness fixed to metal framing using self-tapping screws and reinforcement edges for stability.
