Air Vehicle propelled Air Jets Machine Drawing Free Download DWG File

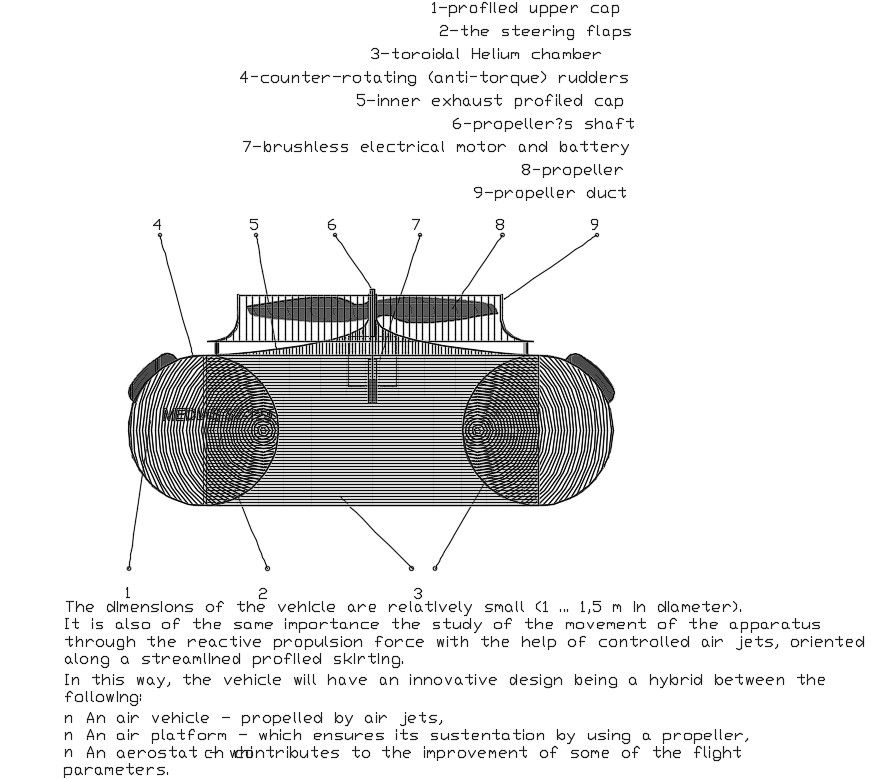

The vehicle machine AutoCAD drawing that shows profiled upper cap, the steering flaps ,toroidal Helium chamber, counter-rotating (anti-torque) rudders, brushless electrical motor and battery, and propeller duct. It is also of the same importance the study of the movement of the apparatus through the reactive propulsion force with the help of controlled air jets, oriented along a streamlined profiled skirting. An air platform which ensures its sustentation by using a propeller.

File Type: DWG File ID: 185922
