Pipe Insulation CAD Drawing Free Download DWG File

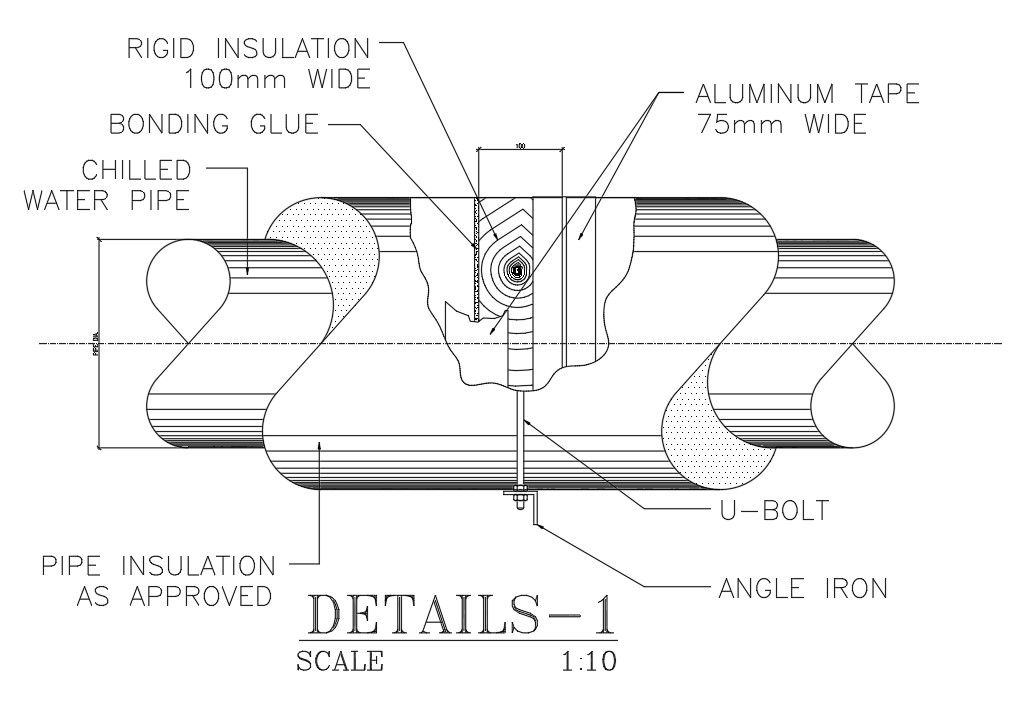

the pipe insulation section CAD drawing consist rigid insulation 100mm wide, bonding glue, chilled water pipe, aluminum tape 75mm wide, pipe insulation as approved angle iron and U-bolt detail in dwg file. Thank you for downloading the AutoCAD drawing file and other CAD program files from our website.

File Type: DWG File ID: 186050
