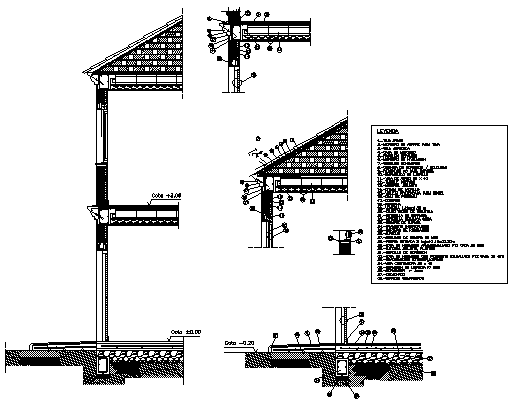

Constructive Section Cavity Wall Detail Drawing 300mm Thick DWG (68)

The Constructive Section Cavity Wall Detail Drawing shows a 300?mm thick wall with precise inner and outer leaf dimensions, 100?mm cavity space, wall ties placement, damp-proof course, insulation positioning, and floor-to-wall connection details. This AutoCAD-DWG file provides accurate sectional details for architects, civil engineers, interior designers, and builders working in Revit, 3D Max, SketchUp, and AutoCAD. The drawing includes comprehensive measurements of brickwork, blockwork, and cavity fill, with annotations for flashing, weep vents, and lintel integration.
