Foundation Mezzanine and Roof Cover Structural Detail Drawing Plan

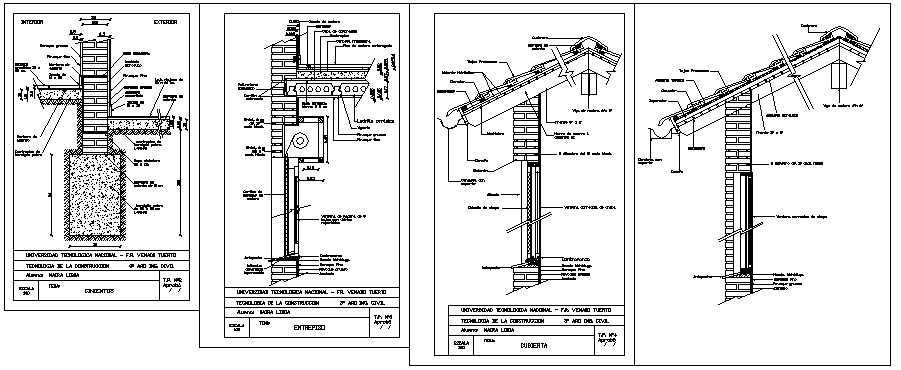

The Foundation Mezzanine and Roof Cover Structural Detail Drawing Plan in AutoCAD DWG format. This technical drawing provides detailed sectional views illustrating the structural composition of the foundation, mezzanine floor system, and roof cover assembly. The drawing clearly presents construction layers, foundation footing arrangement, wall connections, slab structure, roof slope configuration, and structural elements used in the mezzanine support system. These sections help professionals understand the relationship between substructure, intermediate floor systems, and upper roof construction within a building framework.
