Brick Facade Wall Construction Detail With Insulation Layer.

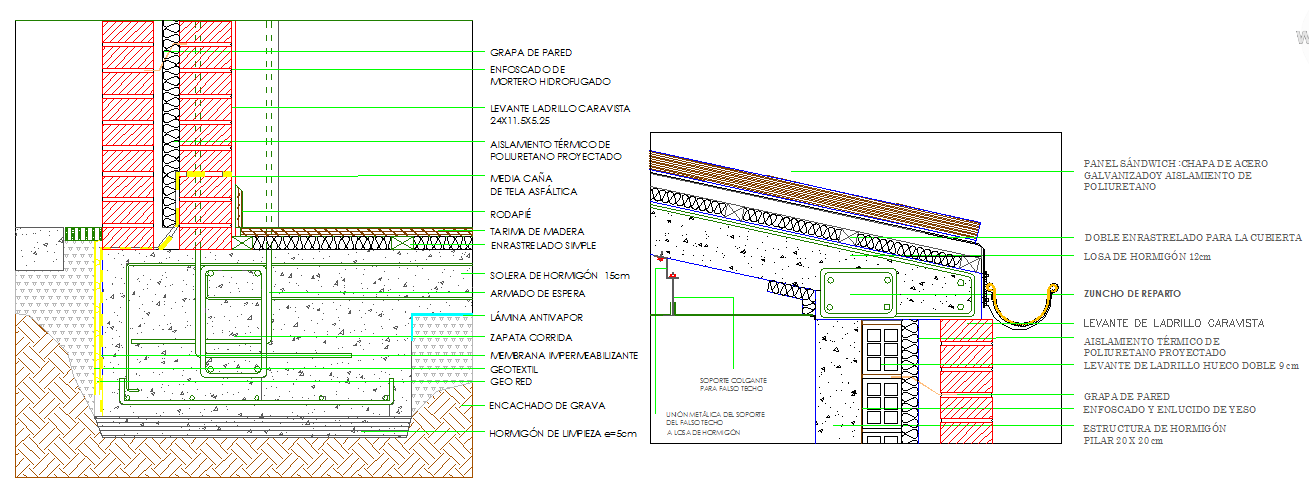

The brick facade wall construction detail drawing presents the layered assembly of an exterior masonry wall used in residential and commercial buildings. This AutoCAD files drawing illustrates the relationship between brick facing, wall insulation layers, waterproof membrane, and reinforced concrete foundation elements. The section detail shows how the brick facade is supported on the structural base while maintaining thermal insulation and moisture protection within the wall system. Construction layers such as mortar joints, thermal insulation boards, and structural concrete components are represented to explain the integration of façade cladding with the building structure.
