Pinlight ceiling detail AutoCAD DWG electrical section plan designed for interior electrical detailing and <a href="https://cadbull.com/detail/49807/Ceiling-light-plan-detail-dwg-file." rel="noopener noreferrer" target="_blank">ceiling lighting</a> installation projects. This detailed CAD drawing includes a concrete slab section, conduit routing, junction box detail, connector arrangement, flexible metal conduit specification, mica tube installation, pinlight housing detail, pinlight bulb section, ceiling line reference, slab line detail, and suspended ceiling lighting arrangement with dimensional annotations. The drawing also contains electrical fitting connections, ceiling-mounted light detailing, conduit placement standards, and technical installation references suitable for professional architectural and engineering documentation. Ideal for architects, civil engineers, interior designers, builders, AutoCAD professionals, Revit users, 3D Max designers, and Google SketchUp experts working on interior lighting systems and <a href="https://cadbull.com/Electrical-Cad" rel="noopener noreferrer" target="_blank">electrical</a> ceiling design projects. This AutoCAD DWG file supports modern lighting installation drafting with accurate ceiling section detailing and electrical construction standards.

Pinlight Ceiling Detail AutoCAD DWG Electrical Section Plans

This AutoCAD DWG file presents a complete duplex house layout, DWG plumbing electrical plan 10m x 12m, with detailed architectural, electrical, and plumbing drawings. The layout includes ground floor and first floor power plans, lighting plans, water supply pipe layouts, and waste discharge systems, clearly illustrating service routing and fixture connections. The drawing also provides septic tank and soak-away sections, foundation layout plan, and overhead and underground water tank elevation details for accurate construction execution. Symbol legends, pipe details, and sectional drawings are included to ensure proper understanding of electrical wiring and plumbing systems. The duplex house layout DWG plumbing electrical plan 10m x 12m offers precise dimensions, coordinated services, and technical clarity, making it suitable for architects, civil engineers, and MEP professionals working on residential projects.

Duplex House Layout DWG Plumbing Electrical Plan 10m x12m dwg files

Kitchen Upper Layout Plan 110cm Prep Table Store Unit DWG presents a detailed second-floor kitchen layout with complete upper unit planning and storage arrangement. The drawing includes a central preparation table of approximately 110 cm length with surrounding circulation space defined by modular dimensions such as 81 cm, 58 cm, and 77 cm spacing. It features multiple storage units, tall units, and wall-mounted cabinets arranged along the perimeter with clear labeling of store and tall unit sections. The layout also includes sink placement with dual bowl configuration, chimney location above the cooking range, and dedicated work zones for preparation and storage. Door opening layout, wall thickness, and internal spacing are clearly defined to ensure functional kitchen design. All dimensions are provided in centimeters for accurate execution. This AutoCAD DWG file ensures precise kitchen upper layout planning with storage, preparation, and service integration.

Kitchen Upper Layout Plan 110cm Prep Table Store Unit DWG files

This AutoCAD DWG drawing presents a complete multi-floor door, window, and hardware schedule prepared for educational and institutional buildings. The file includes ground floor, first floor, second floor, and third floor plans with clear door and window tagging for dormitory rooms, toilets, kitchens, corridors, and service areas. Door types D1 to D5 include flush doors, flush doors with glass transom, louvered doors, and security doors with standard sizes such as 800 x 2100 mm, 900 x 2100 mm, 1000 x 2100 mm, and 1200 x 2100 mm, along with frame thickness, shutter material, and glass specifications. Window types W1 to W3 cover sliding glass windows and awning windows with widths around 1500 mm and 1800 mm, anodized aluminium frames, sill heights, and clear float glass details. Steel grill windows SG1 are shown with bar spacing, frame depth, and fixing levels. Booth panels B1 to B4 illustrate folding arrangements with opening widths up to 5200 mm and heights of nearly 2400 mm. The drawing also integrates a detailed door, window, and hardware schedule table defining quantities, finishes, locks, hinges, and accessories

Collage Multi-Floor Door Window Hardware Schedule Drawing with Sizes

This AutoCAD DWG file provides detailed signage and wayfinding system designs for a building, including various sign types such as evacuation signs, no smoking signs, and emergency assembly point markers. The drawing includes precise elevations, section views, and dimensions for each sign type. It also outlines the installation <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">details</a> for the signage, ensuring proper placement and visibility. Ideal for architects, designers, and engineers involved in commercial building <a href="https://cadbull.com/Projects" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">projects</a>, this file is crucial for the design and implementation of clear navigation and safety signage, with additional reference available from Cadbull’s <a href="https://cadbull.com/detail/268283/Champagne-tank-Plan-and-Section-Detail-DWG-AutoCAD-file" rel="noopener noreferrer" target="_blank" style="color: rgb(0, 102, 204);">Champagne tank</a> plan and section detail DWG file for integrated project documentation.

Wayfinding and Signage System with Detailed Elevations and Dimension

This AutoCAD DWG file provides a detailed foundation layout along with a section elevation, including precise reinforcement <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">details</a>. It includes dimensions for the foundation and footing, such as 5.77m x 2.731m for the overall foundation area, along with specific measurements for the sectional elevation (6.600m x 5.600m). The drawing also contains key reinforcement details, including rebar sizes and spacing, ensuring proper <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">structural</a> integrity. Ideal for architects, civil engineers, and builders working on foundation design and construction, supported by industrial water structure reference drawings such as sections of <a href="https://cadbull.com/detail/270570/Section-of-Pump-House-and-Regulating-Gate-Plan-in-DWG-File" rel="noopener noreferrer" target="_blank" style="color: rgb(0, 102, 204);">pump house</a> and regulating gate plans, prepared in AutoCAD DWG format for coordinated structural planning.

Foundation Layout and Section Elevation with Detailed Reinforcement

This AutoCAD DWG file presents a professionally drafted 2D 3BHK kitchen working drawing prepared for practical site execution. The drawing includes a<a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank"> detailed</a> top plan, internal elevations, and sectional views with clearly marked measurements in millimeters. It covers kitchen layout planning with accurate cabinet positioning, shutter and shelf arrangements, counter depth, wall thickness, and clearances required for installation. Elevation drawings show shutter heights, shelf spacing, and alignment, while sections explain internal <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction</a> details for precise coordination. Designed for architects, civil engineers, interior designers, and builders, this DWG file is fully compatible with AutoCAD and can be easily used in Revit, 3ds Max, and SketchUp workflows. Ideal for residential projects, it supports accurate quantity estimation, coordination, and error-free execution using a standard 2D kitchen working drawing format, along with Cadbull’s <a href="https://cadbull.com/detail/262506/2D-Sofa-CAD-Blocks-or-AutoCAD-Furniture-Drawing-Layouts" rel="noopener noreferrer" target="_blank">2D sofa CAD</a> blocks and furniture drawing layouts for integrated interior design planning.

2D 3BHK Kitchen Working Drawing With Detailed Dimensions DWG

This CAD drawing set presents a complete villa landscape site plan with an electrical single-line diagram prepared for professional architectural and engineering use. The file includes a detailed site layout showing plot boundaries, driveway curves, drop-off zones, pump house under hill, parking areas, building footprint, garden zones, contour edges, and outdoor circulation paths. The <a href="https://cadbull.com/Electrical-Cad" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">electrical </a>drawing covers the landscape distribution board DB-LS with a maximum demand load of 2.55 kVA, RCCB 30mA, MCB ratings, feeder from MSB, riser location at ground floor, and individual lighting circuits L1 to L12 for outdoor spotlights and garden lighting. Cable specifications such as 2 x 1C x 4mm² CU XLPE PVC with earthing details are clearly marked. This DWG is ideal for architects, civil engineers, and <a href="https://cadbull.com/Cad-Landscaping" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">landscape</a> designers who need accurate outdoor planning with coordinated electrical infrastructure for villas and resort-style developments. The file is ready for AutoCAD modification, construction documentation, BOQ preparation, and client presentation, and can be effectively coordinated with detailed electrical component CAD drawings, such as bayonet cap <a href="https://cadbull.com/amp/270838/small-bayonet-cap-cad-drawing-electrical-bulb-dwg" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">bulb and lighting</a> fixture details, used for precise outdoor lighting installation and specification control.

Landscape Site Plan with Electrical Layout DWG for Villa Project

This professional drainage plan CAD drawing presents a complete drainage and levels plan sheet 1 of 3 for a large mixed-use residential tower development in Ho Chi Minh City. The drawing is prepared at scale 1:200 (A1) and covers the full site boundary with <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank" style="color: rgb(0, 102, 204); background-color: transparent;">detailed</a> paving areas, lawn zones, planting areas, water features, EVA routes, ramps, drop-off zones, service access, and underground drainage coordination. It clearly indicates finished floor levels, top of wall, top of kerb, bottom of kerb, water levels, slopes in percentages, slot drains, area drains, planter drains, overflow drains, subsoil drains, roof drains, and manhole locations with matching covers. The layout also includes residential lobby zoning, retail and service areas, parking access, circulation cores, and landscape drainage interfaces, making it highly valuable for <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank" style="color: rgb(0, 102, 204); background-color: transparent;">architects</a>, civil engineers, builders, and BIM professionals. This drainage levels plan CAD drawing is ideal for technical reference, construction documentation, site coordination, and design development workflows in AutoCAD, Revit, and 3D modeling environments. Access this and thousands of high-quality engineering resources by subscribing to Cadbull’s premium library, trusted by professionals for accurate site drainage layout and complex urban project documentation, with reference to <a href="https://cadbull.com/detail/270566/Township-Retention-Pond-Master-Plan-in-AutoCAD-DWG-Format" rel="noopener noreferrer" target="_blank" style="color: rgb(0, 102, 204);">township retention</a> pond master plan drawings prepared in AutoCAD DWG format for integrated stormwater management and urban drainage planning.

Drainage Plan CAD Drawing 1:200 Residential Tower Site Layout

This professional CAD DWG set presents a complete lift shaft and hoistway planning system for a high-rise tower, covering Basement levels through L78 floors with <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">detailed</a> vertical sections, machine room zones, refuge and MEP transfer floors, and coordinated shaft dimensions. The drawings include hoistway plans for the basement, typical floors, and MEP floors, along with full-height lift sections showing pit depth, overhead clearance, slab levels, and structural interfaces. Multiple elevator types are illustrated, including passenger lifts, fireman lifts, service lifts, and parking lifts, each with accurate shaft widths, wall thicknesses, and level references. Clear annotations define floor-to-floor heights, call button fixing levels, and coordination lines for RCC walls, blockwork, and <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">structural </a>cores. This Lift shaft DWG and Hoistway plan package is ideal for architects, civil engineers, interior designers, and BIM users working on tower projects, enabling precise coordination in AutoCAD, Revit, and construction documentation. It is a ready-to-use Tower elevator CAD resource and Lift section drawing that saves design time while ensuring technical accuracy for High-rise lift hoistway DWG file and Multi-floor elevator section CAD needs with reference to <a href="https://cadbull.com/detail/270631/Waste-Filtration-Project-Layout-plan-in-AutoCAD-DWG-Format" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 102, 204);">waste filtration</a> project layout plan CAD drawings that demonstrate similar standards of multi-level planning, service coordination, vertical system integration, and construction-ready documentation.

High Rise Lift Shaft DWG Basement to L78 Hoistway Plan layout

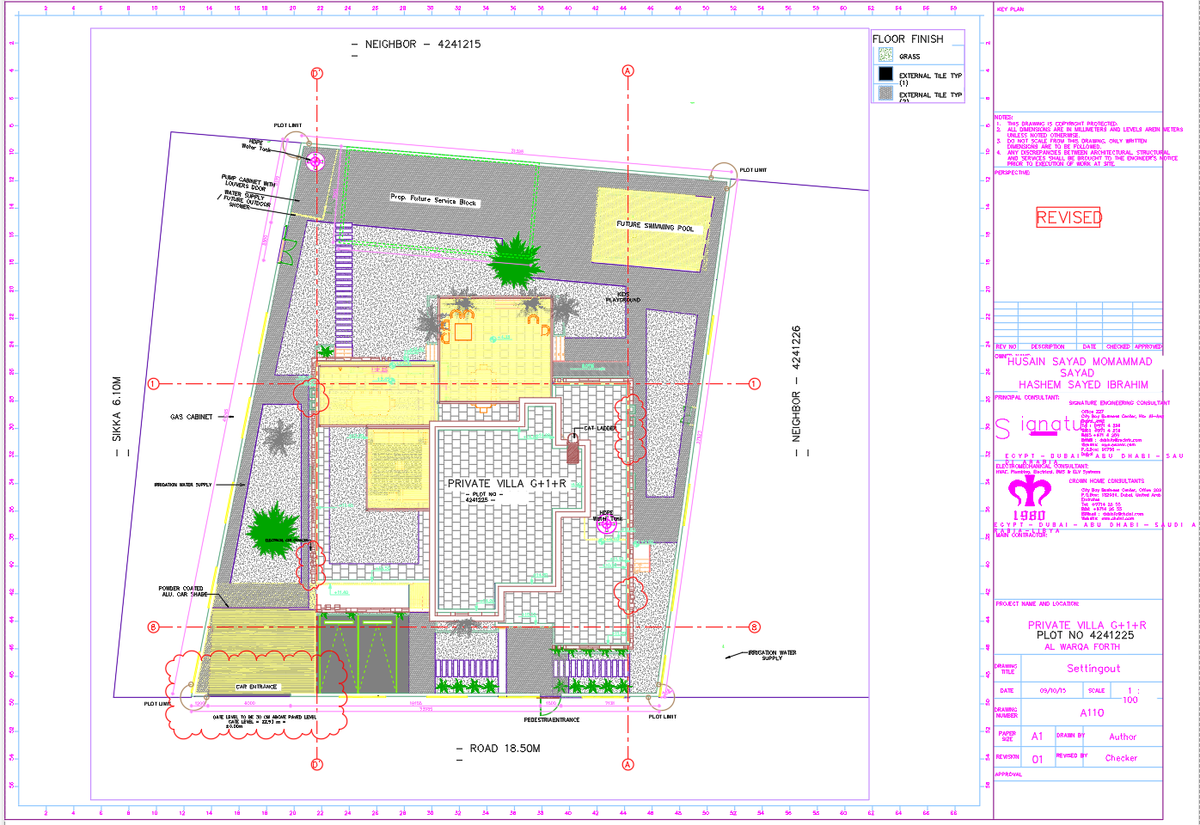

&nbsp;This AutoCAD DWG file provides a fully detailed private villa G+1+R site plan featuring a clear arrangement of built spaces, <a href="https://cadbull.com/Cad-Landscaping" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(17, 85, 204);">landscape </a>zones, circulation routes, and outdoor amenities. The layout connects directly to an 18.50m wide main road, offering a well-defined car entrance, pedestrian entrance, and organized approach area. The villa is centrally positioned within the plot limits, surrounded by paved walkways, green buffers, plantation beds, and irrigation supply points. Utility placements such as the gas cabinet, pump chamber with lifting station, and service routes are clearly marked, ensuring accurate coordination for engineering and execution work.On the right side of the plot, the drawing highlights the designated future swimming pool area, accompanied by pathway access and softscape elements. A proposed future service block is located toward the rear, supporting future expansion needs. Neighbouring plot references provide clear boundary alignment, while the landscape elements, including trees, shrubs, and shaded zones, enhance the outdoor environment. The site plan also shows the courtyard paving, stepped access, and surrounding hardscape, making it highly useful for architects, civil engineers, and designers seeking a precise residential site layout for planning and <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(17, 85, 204);">construction</a>.

Private villa site plan with 18.50m road access and pool layout

This detailed AutoCAD building plan presents a complete multi-storey project containing basement parking, ground floor showrooms, and four levels of residential units. Basement-II offers a 77 ft 6 in x 66 ft 6 in parking hall, while Basement-I includes 75 ft 6 in x 20 ft 6 in parking with lift access. The ground floor features three showrooms sized 22 ft 6 in x 50 ft, 22 ft 9 in x 50 ft, and 20 ft x 50 ft, along with open-to-sky shafts measuring 4 ft 7 in, 6 ft 3 in, and 9 ft 9 in.Typical floors include rooms sized 12 ft x 11 ft 3 in, 15 ft x 11 ft 3 in, 10 ft x 11 ft 3 in, 14 ft 6 in x 11 ft, <a href="https://cadbull.com/Kitchen" rel="noopener noreferrer" target="_blank">kitchens </a>measuring 5 ft 6 in x 10 ft 9 in, 6 ft x 10 ft 9 in, and lounges of 33 ft 3 in x 10 ft and 28 ft x 10 ft 9 in. Bathrooms appear as 7 ft x 5 ft 6 in, 4 ft 3 in x 5 ft 3 in, and 4 ft x 6 ft. Balconies range from 3 ft to 11 ft 6 in x 6 ft, with passages of 5 ft and 7 ft wide for circulation. The elevation shows RCC beams of 9 in x 24 in, 6-inch slabs, and a plot size of 59 ft 9 in x 50 ft, as noted on the site plan.

Commercial Residential Cad Drawing with Floors Parking and Rooms
