Inclined Roof Hidden Gutter Construction Detail With Tile And Beam

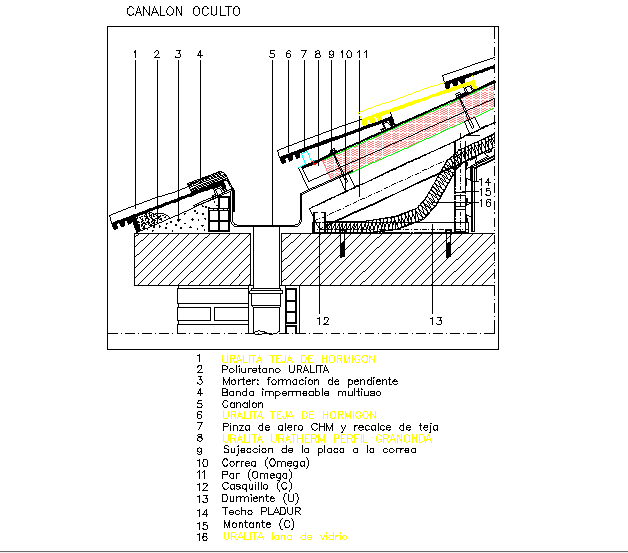

This drawing illustrates an inclined roof construction detail featuring a hidden gutter drainage system integrated within the sloped roof structure. The layout shows the arrangement of concrete roof tiles supported by Uralita roofing components and structural battens positioned along the roof slope. Key construction elements visible in the section include polyurethane insulation layer, slope-forming mortar, multi-layer waterproof membrane band, and concealed gutter channel placed between roof sections. The drawing also highlights roof tile clamps and Uralita Uratherm profile sheets that provide structural stability and proper fixing of the roof tile system.
