Brick Wall Section Detail with Footing and Structural Layers AutoCAD

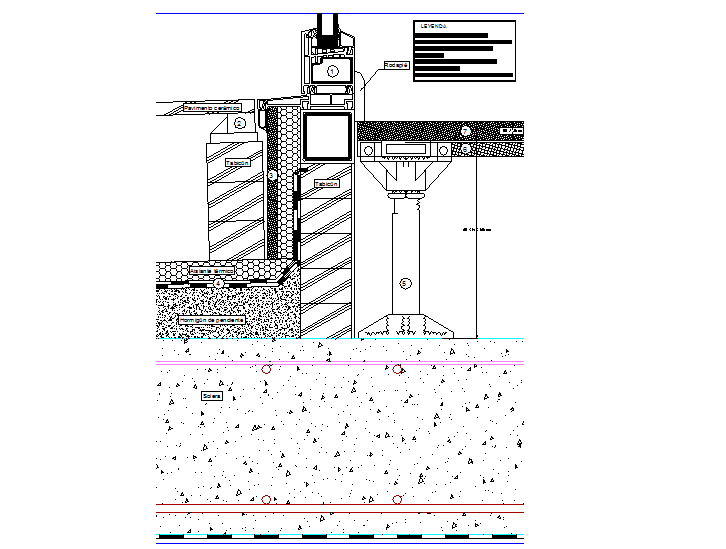

This AutoCAD DWG file provides detailed drawings of a brick wall, including footing, mortar layers, insulation, and reinforcement. The drawing shows precise dimensions for wall thickness, brick placement, and structural support, offering architects, civil engineers, and builders a comprehensive reference for accurate construction. Each section highlights footing depth, plaster layers, and material composition, ensuring stability, thermal efficiency, and compliance with building standards. CAD professionals can efficiently visualize, edit, and integrate this brick wall section into residential or commercial projects. Fully layered and compatible with AutoCAD, Revit, SketchUp, and 3D Max, this DWG supports material estimation, structural verification, and seamless integration into architectural designs.
