Glass Dome on Metal Structure with Sections and Reinforcement AutoCAD

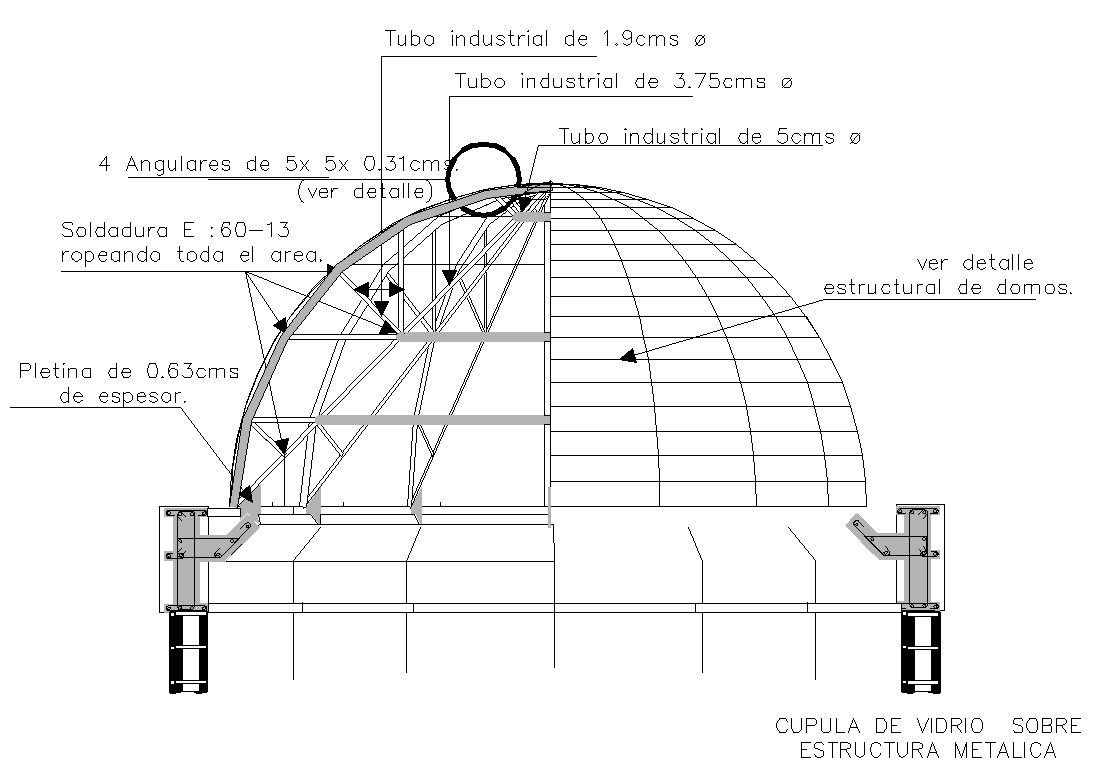

This AutoCAD DWG file provides detailed construction drawings of a glass dome mounted on a metal structure, showing frame profiles, support trusses, welding points, connection brackets, and dimensional annotations for accurate fabrication and assembly. The drawing includes measurements for industrial tube diameters, steel plate thickness, angles, reinforcement braces, and overall dome curvature, offering architects, structural engineers, and builders a complete reference for planning and installation. Each view highlights structural truss placement, welding locations, load-bearing elements, and attachment points for the glass panels to ensure stability, safety, and precision alignment.
