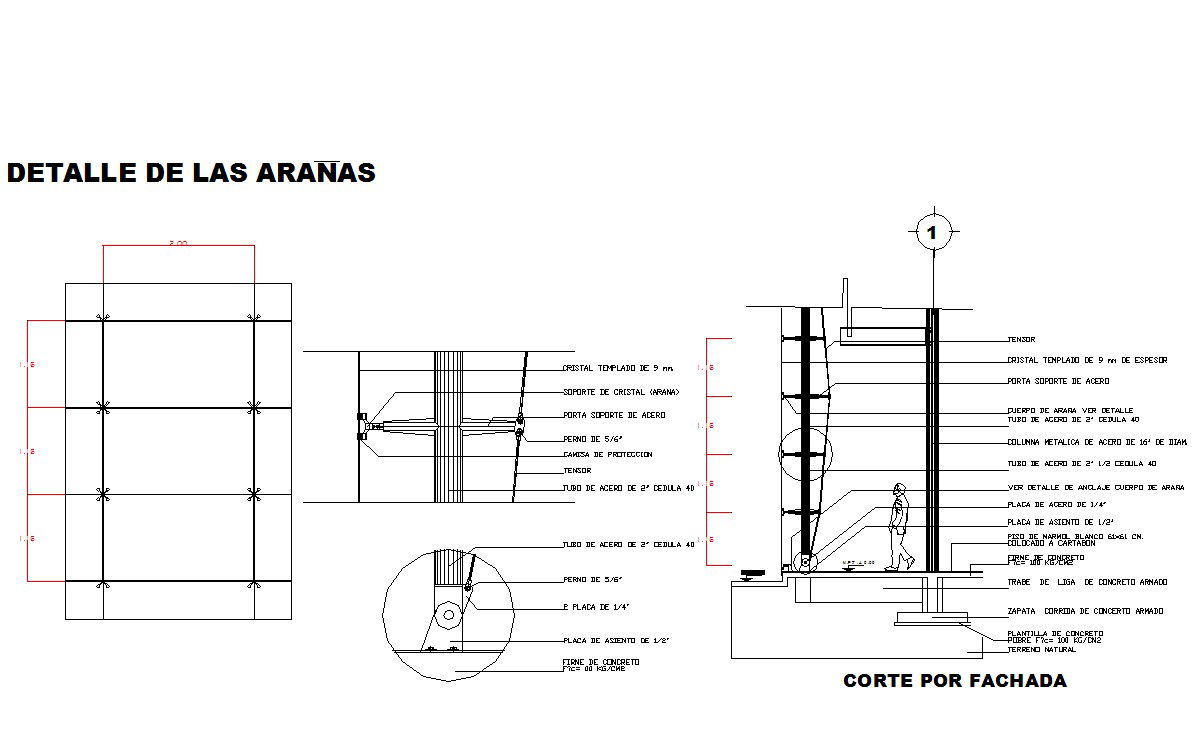

Spiders Installation Detail in Crystal Facades with Sections

This AutoCAD DWG file provides detailed drawings for the installation of spider fittings in crystal facades, showing tempered glass panels, spider supports, steel brackets, anchor plates, and dimensional annotations for accurate facade construction. The drawing includes exact measurements for glass thickness, spider arm positions, column supports, anchor bolt sizes, base plates, and cable tensioners, offering architects, structural engineers, and builders a complete reference for precise installation. Each section highlights glass panel alignment, support tube placement, and reinforced concrete footing integration to ensure structural stability, safety, and compliance with design standards. CAD professionals can visualise, edit, and integrate these spider fitting details into commercial, residential, or office building glass facades. Fully layered and compatible with AutoCAD, Revit, SketchUp, and 3D Max, this DWG supports material estimation, construction documentation, and seamless coordination with architectural and structural workflows for professional facade execution.
