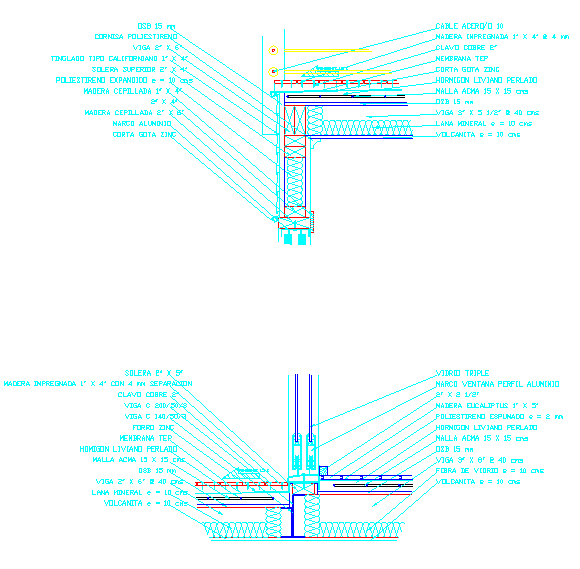

Constructive Terrace Section Detail with Insulation and Roof Layers

The terrace construction CAD detail also includes roof finishing layers such as concrete screed, waterproofing membrane, and protective terrace surface elements designed to ensure durability and weather resistance. Additional components such as wooden boarding, fastening elements, and structural connections between roof layers are illustrated to explain how the terrace roof system is assembled. The sectional views demonstrate the relationship between roof covering materials, insulation layers, and supporting structural members.
