Single Family House Architectural Plan Section and Elevation Design

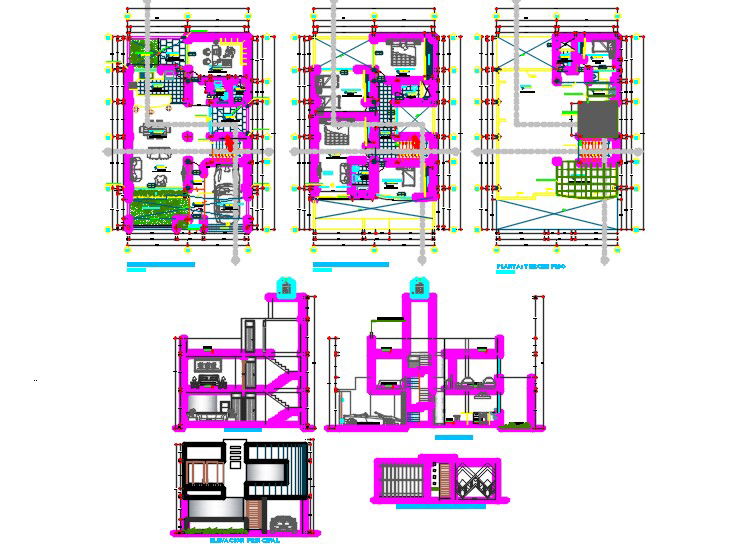

The single-family house architectural plan section and elevation design drawing present a detailed AutoCAD residential layout developed for modern house construction and planning. This comprehensive drawing includes floor plans that illustrate the organized arrangement of residential spaces across different levels of the house. The layout clearly shows functional areas such as living rooms, bedrooms, kitchens, bathrooms, dining areas, circulation corridors, and staircases designed to provide comfortable residential living. Structural grid lines, dimension annotations, and wall alignments are also included to support accurate architectural planning and building layout development for a single-family residence.
