Thermal Insulating Block Wall Construction Detail CAD Drawing

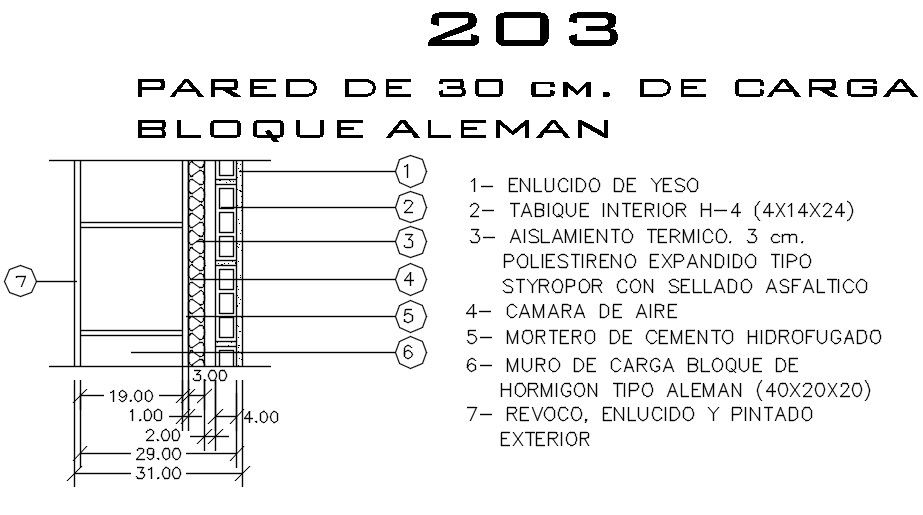

This AutoCAD DWG drawing presents a thermal insulating block wall construction detail used in modern building design. The drawing illustrates a masonry wall system constructed with hollow concrete blocks designed to reduce heat transfer between the exterior and interior spaces. The wall assembly shows the arrangement of block units, mortar joints, and insulation cavities that improve the thermal performance of the wall. Hollow concrete blocks are commonly used because the internal voids reduce heat conductivity and can be filled with insulation materials such as perlite, vermiculite, or foam to increase the thermal resistance of the wall system.
