Glass Block Wall Construction Detail Panel Installation Design

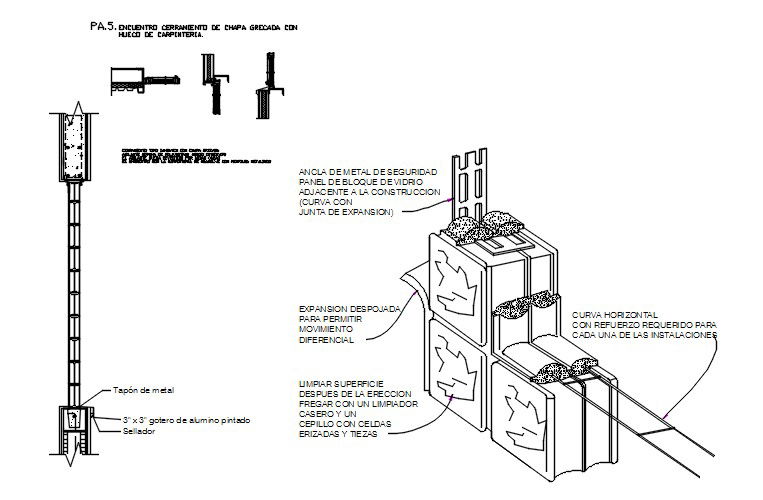

The Glass Block Wall Construction Detail drawing presents a technical layout illustrating the installation and structural arrangement of glass block panels used in architectural wall systems. The drawing shows how glass blocks are assembled in a grid pattern to create a translucent wall surface that allows natural light penetration while maintaining privacy and structural stability. Glass block panels are typically supported by metal anchors, reinforcement bars, and mortar joints that secure each block within the wall assembly. The detail also illustrates expansion joints and reinforcement elements that allow movement and prevent cracking caused by structural or temperature variations.
