Portable Water Well Construction Detail Plan Section Designs

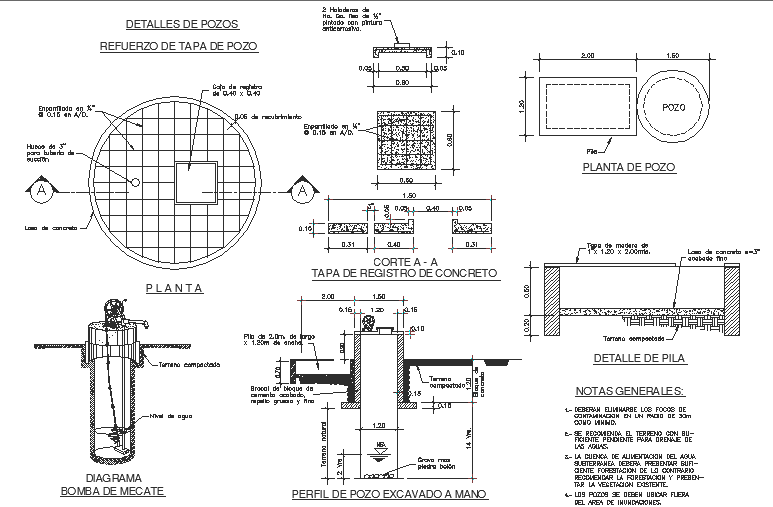

The Portable Water Well Construction Detail drawing presents a comprehensive layout illustrating the structural design and construction elements of a portable water well system. The drawing includes plan views, sectional views, and reinforcement details showing the arrangement of the well structure and protective concrete cover. The well plan illustrates the circular opening and reinforced concrete slab used as a protective cover for the well opening. Reinforcement bars are arranged within the concrete slab to strengthen the structure and prevent cracking or damage during long term use. The drawing also highlights the placement of the water extraction system connected to the well structure.
